Epoxy Coated Wire Mesh
Wire Mesh

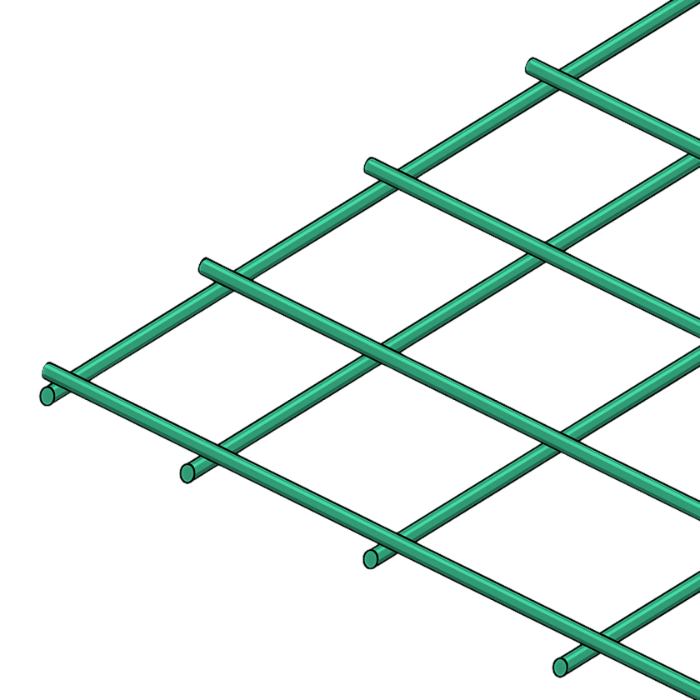

Epoxy-Coated Wire Mesh is a high-strength, welded steel reinforcement with a corrosion-resistant epoxy finish, used to provide long-term structural support, crack control, and load distribution in concrete slabs, foundations, walls, and other heavy-duty industrial and construction applications, especially in environments exposed to moisture, chlorides, or harsh conditions. Available in 60" x 120" Sheets (not rolls).
Item # |

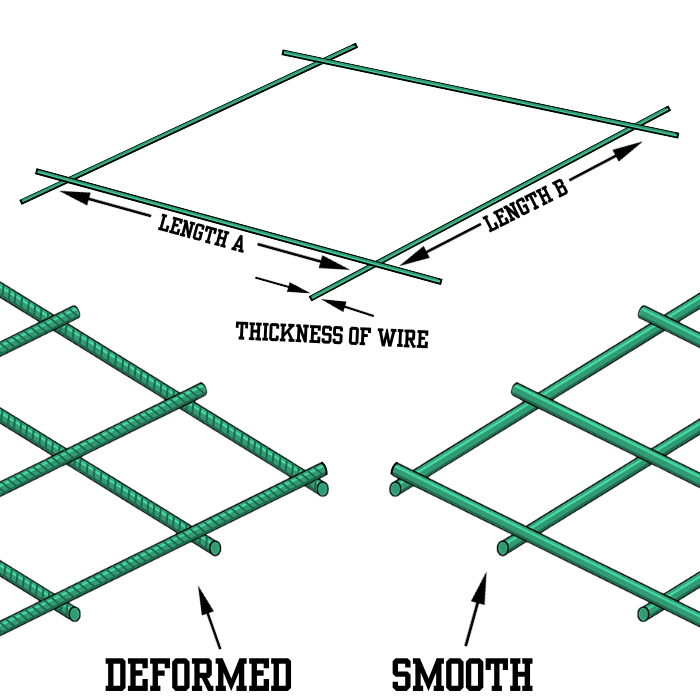

Length A (in) |
Length B (in) |
Thickness of Wire (in) |
Thickness of Wire (gauge) |
Weight Per Square Foot (lb) |
Grade |
Material |
Finish |
Type |
Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|
| 4 X 4 X 6 GA (D2.9 or W2.9) EPOXY WIRE MESH SHEET 4 X 4 X 6 GA (D2.9 or W2.9) EPOXY WIRE MESH SHEET/Asset/Wire-Mesh.png | Length A (in) N/A 4 | Length B (in) N/A 4 | Thickness of Wire (in) N/A 0.192 | Thickness of Wire (gauge) N/A 6 | Weight Per Square Foot (lb) N/A 0.62 | Grade N/A A1064 Grade 65 | Material N/A Carbon Steel | Finish N/A Epoxy | Type N/A Smooth Deformed | Request Quote |
| 6 X 6 X 10 GA (D1.4 or W1.4) EPOXY WIRE MESH SHEET 6 X 6 X 10 GA (D1.4 or W1.4) EPOXY WIRE MESH SHEET/Asset/Wire-Mesh.png | Length A (in) N/A 6 | Length B (in) N/A 6 | Thickness of Wire (in) N/A 0.135 | Thickness of Wire (gauge) N/A 10 | Weight Per Square Foot (lb) N/A 0.26 | Grade N/A A1064 Grade 65 | Material N/A Carbon Steel | Finish N/A Epoxy | Type N/A Smooth Deformed | Request Quote |
| 6 X 6 X 6 GA (D2.1 OR W2.1) EPOXY WIRE MESH SHEET 6 X 6 X 6 GA (D2.1 OR W2.1) EPOXY WIRE MESH SHEET/Asset/Wire-Mesh.png | Length A (in) N/A 6 | Length B (in) N/A 6 | Thickness of Wire (in) N/A 0.162 | Thickness of Wire (gauge) N/A 8 | Weight Per Square Foot (lb) N/A 0.314 | Grade N/A A1064 Grade 65 | Material N/A Carbon Steel | Finish N/A Epoxy | Type N/A Smooth Deformed | Request Quote |
| 6 X 6 X 6 GA (D2.9 OR W2.9) EPOXY WIRE MESH SHEET 6 X 6 X 6 GA (D2.9 OR W2.9) EPOXY WIRE MESH SHEET/Asset/Wire-Mesh.png | Length A (in) N/A 6 | Length B (in) N/A 6 | Thickness of Wire (in) N/A 0.192 | Thickness of Wire (gauge) N/A 6 | Weight Per Square Foot (lb) N/A 0.419 | Grade N/A A1064 Grade 65 | Material N/A Carbon Steel | Finish N/A Epoxy | Type N/A Smooth Deformed | Request Quote |
