Cold Rolled Square & Rectangular Tubes
Tubes
Cold Rolled (CR) Steel Tube is available as both square and rectangular products with a smoother finish and tighter tolerances used for both structural support and ornamental applications. Available in a variety of dimensions, standard stock lengths, cut-to-length sizes, and custom part orders.

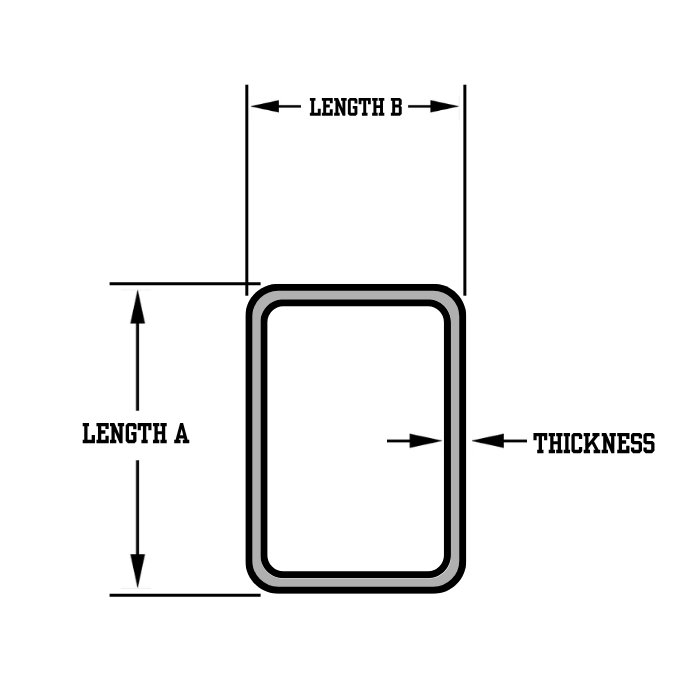

Item Name |
Length A (in) |
Length B (in) |
Thickness (in) |
Weight Per Linear Foot (lb) |
Material |
Type |
Finish |
Grade |
Drawing |
Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|

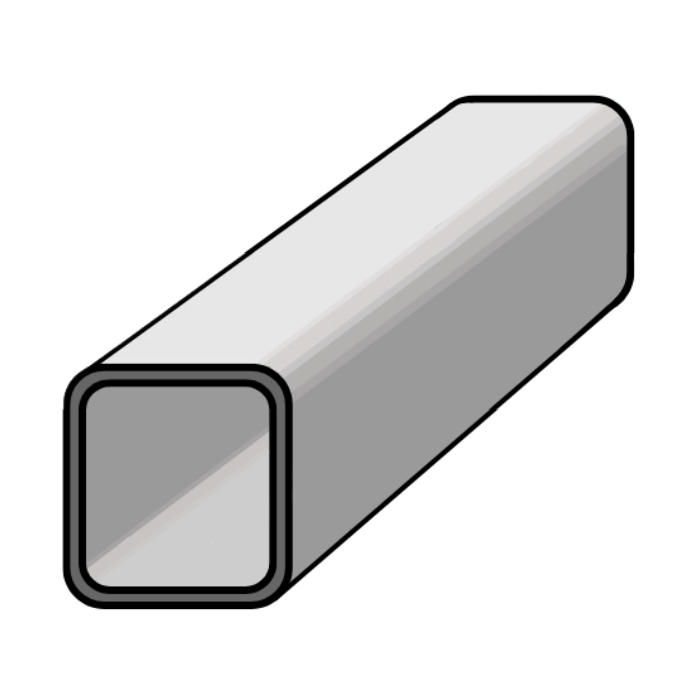

| CR TUBE 3/4 X 3/4 X .049 CR TUBE 3/4 X 3/4 X .049/Asset/Square-Tube-Model.png | Length A (in) N/A 3/4 | Length B (in) N/A 3/4 | Thickness (in) N/A 0.049 | Weight Per Linear Foot (lb) N/A 0.47 | Material N/A Carbon Steel | Type N/A Square | Finish N/A Bare Cold Rolled (CR) | Grade N/A A500 A513 |
Drawing
 |
Request Quote |
| CR TUBE 1 X 1 X .049 CR TUBE 1 X 1 X .049/Asset/Square-Tube-Model.png | Length A (in) N/A 1 | Length B (in) N/A 1 | Thickness (in) N/A 0.049 | Weight Per Linear Foot (lb) N/A 0.61 | Material N/A Carbon Steel | Type N/A Square | Finish N/A Bare Cold Rolled (CR) | Grade N/A A500 A513 |
Drawing
|
Request Quote |
| CR TUBE 1 1/2 X 3/4 X .049 CR TUBE 1 1/2 X 3/4 X .049/Asset/Square-Tube-Model.png | Length A (in) N/A 2 | Length B (in) N/A 2 | Thickness (in) N/A 0.065 | Weight Per Linear Foot (lb) N/A 1.69 | Material N/A Carbon Steel | Type N/A Square | Finish N/A Bare Cold Rolled (CR) | Grade N/A A500 A513 |
Drawing
|
Request Quote |
| CR TUBE 2 X 1 X .065 CR TUBE 2 X 1 X .065/Asset/Rectangular-Tube-Model.png | Length A (in) N/A 1-1/2 | Length B (in) N/A 3/4 | Thickness (in) N/A 0.049 | Weight Per Linear Foot (lb) N/A 0.80 | Material N/A Carbon Steel | Type N/A Rectangular | Finish N/A Bare Cold Rolled (CR) | Grade N/A A500 A513 |
Drawing
 |
Request Quote |
| CR TUBE 2 X 2 X .065 CR TUBE 2 X 2 X .065/Asset/Rectangular-Tube-Model.png | Length A (in) N/A 2 | Length B (in) N/A 1 | Thickness (in) N/A 0.065 | Weight Per Linear Foot (lb) N/A 1.21 | Material N/A Carbon Steel | Type N/A Rectangular | Finish N/A Bare Cold Rolled (CR) | Grade N/A A500 A513 |
Drawing
|
Request Quote |
