1-3/4 Inch (in.) Double Groove Molded Cap Rails
Molded Cap Rail

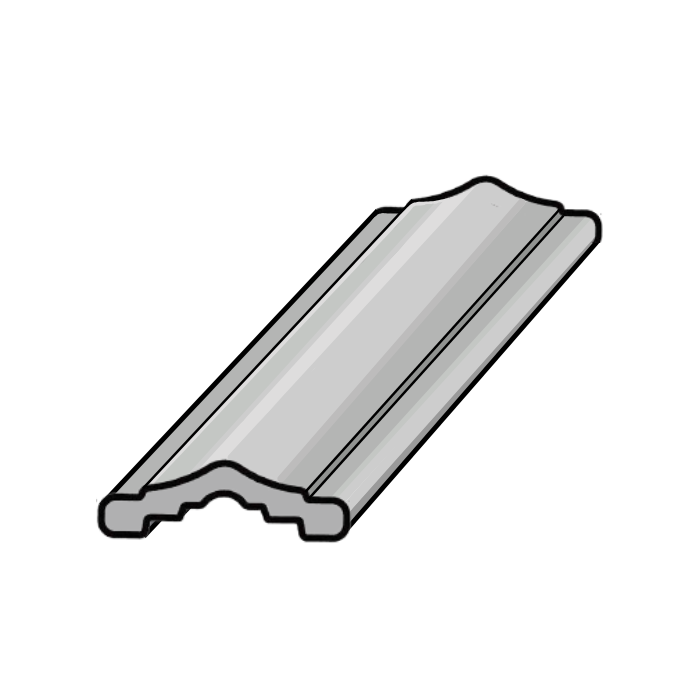

Double Groove Handrail Molding features two precision-cut grooves designed to accept various baluster shapes and sizes, ensuring a secure and consistent fit. This standard 1-3/4" wide profile contrasts with the wider 2-7/32" heavy rail molding, offering a more traditional handrail size for most installations. It is commonly used in staircases, landings, and railing systems in residential, commercial, and architectural settings. settings, providing both structural support and a refined appearance. Available in up to 20' length sections.

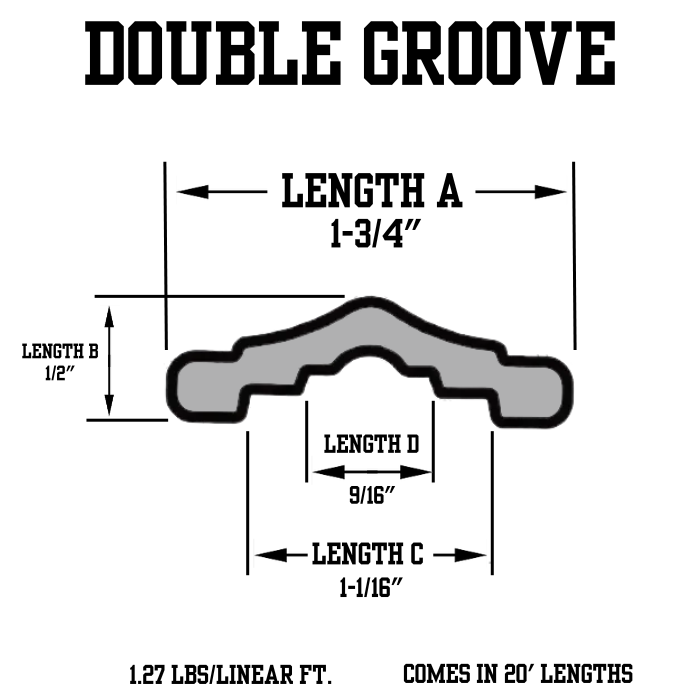

Item # |
Length A (in) |
Length B (in) |
Length C (in) |
Length D (in) |
Weight Per Linear Foot (lb) |
Material |
Grade |
Request Quote |
|---|---|---|---|---|---|---|---|---|
| Double Groove Handrail Molding Double Groove Handrail Molding/Asset/1-34-Inch--in---Double-Groove-Molded-Cap-Rails.png | Length A (in) N/A 1-3/4 (1.750) | Length B (in) N/A 1/2 (0.500) | Length C (in) N/A 1-1/16 (1.063) | Length D (in) N/A 9/16 (0.563) | Weight Per Linear Foot (lb) N/A 1.27 | Material N/A Carbon Steel | Grade N/A A36 | Request Quote |
