Type F (Intermediate Rib) Roof Metal Decking
Metal Decking
Steel Roof Decking provides structural support for commercial and industrial roofing systems and is available in multiple profiles, including Type A (Narrow Rib), Type B (Wide Rib), Type F (Intermediate Rib), and Type N (Deep Rib). Each profile offers different span and load capabilities, from light-duty and form-deck use to long-span, heavy-duty roof applications. Decking is offered in galvanized (G60/G90), prime-painted, or bare steel finishes, providing options for corrosion resistance, interior use, or cost-sensitive applications. Compatible with most roofing assemblies, steel roof deck installs quickly, delivers uniform support, and works with a wide range of framing system

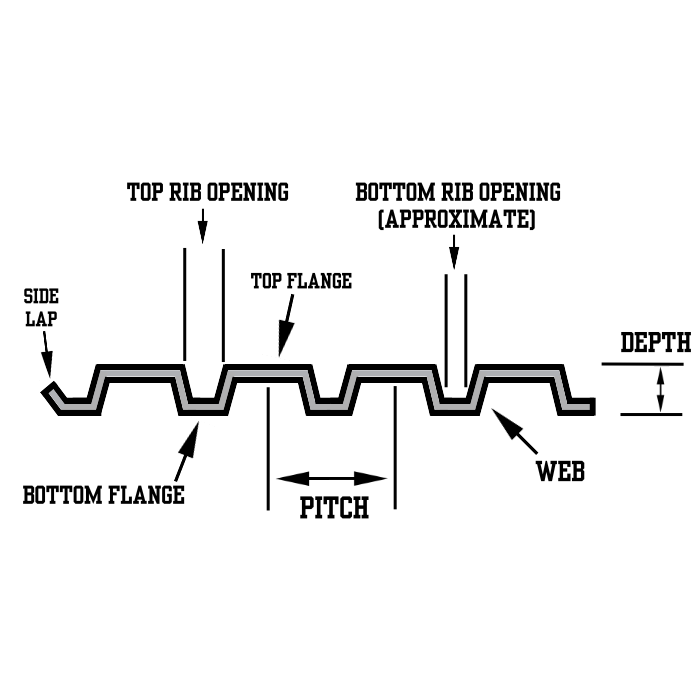

Item Name |
Depth (in) |
Top Rib Opening (in) |
Bottom Rib Opening (in) |
Pitch (in) |
Thickness (gauge) |
Thickness (in) |
Weight Per Square Foot (lb) |
Type |
Finish |
Drawing |
Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|

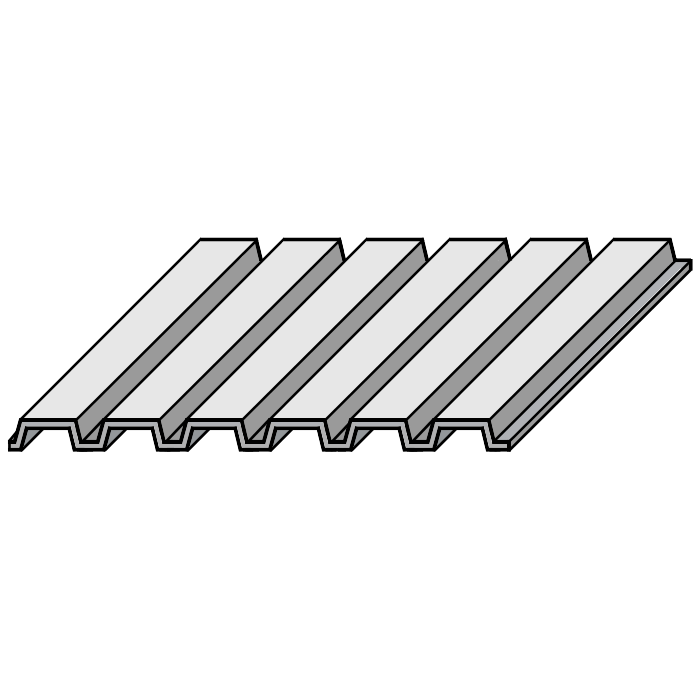

| 1 1/2 X 20 GA TYPE F (IR) METAL ROOF DECKING 1 1/2 X 20 GA TYPE F (IR) METAL ROOF DECKING/Asset/Intermediate-Rib-Metal-Decking-Model.png | Depth (in) N/A 1.5 | Top Rib Opening (in) N/A 1 3/4 | Bottom Rib Opening (in) N/A 1/2 | Pitch (in) N/A 6 | Thickness (gauge) N/A 20 | Thickness (in) N/A 0.0358 | Weight Per Square Foot (lb) N/A 2.1 | Type N/A Type F (IR - Intermediate Rib) | Finish N/A Bare Galvanized Painted |
Drawing
 |
Request Quote |
| 1 1/2 X 18 GA TYPE F (IR) METAL ROOF DECKING 1 1/2 X 18 GA TYPE F (IR) METAL ROOF DECKING/Asset/Intermediate-Rib-Metal-Decking-Model.png | Depth (in) N/A 1.5 | Top Rib Opening (in) N/A 1 3/4 | Bottom Rib Opening (in) N/A 1/2 | Pitch (in) N/A 6 | Thickness (gauge) N/A 18 | Thickness (in) N/A 0.0474 | Weight Per Square Foot (lb) N/A 2.8 | Type N/A Type F (IR - Intermediate Rib) | Finish N/A Bare Galvanized Painted |
Drawing
|
Request Quote |
