Composite/Embossed Metal Decking
Metal Decking
Composite Steel Decking features an embossed surface designed to mechanically bond with poured-in-place concrete, creating a composite slab system with increased strength and stiffness. Unlike smooth Form Deck, which serves only as a non-composite form, the embossments in Composite Deck provide shear interlock that allows the steel and concrete to act together structurally. Ideal for floors, mezzanines, and multi-story construction, Composite Decking offers enhanced load-carrying capacity, efficient material usage, fast installation, and compatibility with a wide range of framing systems.
Item Name |
Depth (in) |
Top Rib Opening (in) |
Bottom Rib Opening (in) |
Pitch (in) |
Thickness (gauge) |
Thickness (in) |
Weight Per Square Foot (lb) |
Type |
Finish |
Drawing |
Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|

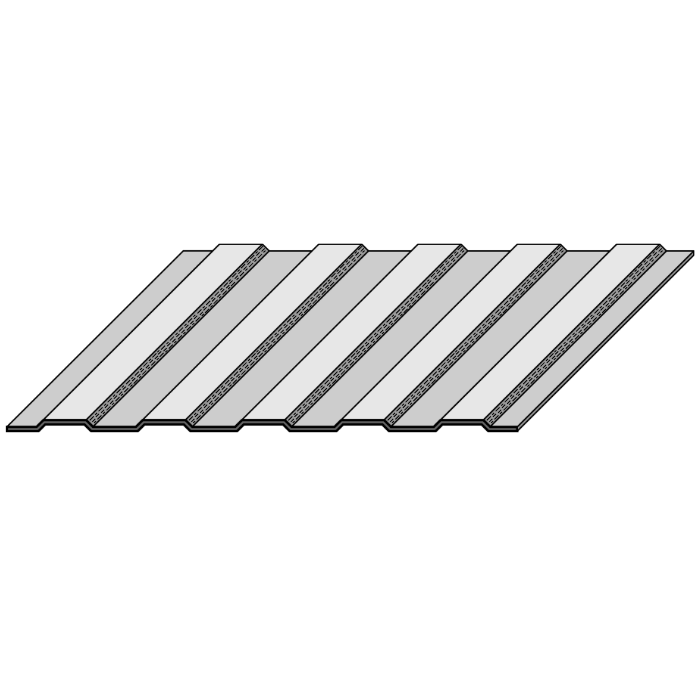

| 1 1/2 X 22 GA METAL DECKING (COMP) 1 1/2 X 22 GA METAL DECKING (COMP)/Asset/Embossed-Metal-Decking-Model.png | Depth (in) N/A 1.5 | Top Rib Opening (in) N/A 2 1/2 | Bottom Rib Opening (in) N/A 1.75 | Pitch (in) N/A 6 | Thickness (gauge) N/A 22 | Thickness (in) N/A 0.0295 | Weight Per Square Foot (lb) N/A 1.67 | Type N/A Composite/Embossed | Finish N/A Bare Galvanized Painted |
Drawing
 |
Request Quote |
| 1 1/2 X 20 GA METAL DECKING (COMP) 1 1/2 X 20 GA METAL DECKING (COMP)/Asset/Embossed-Metal-Decking-Model.png | Depth (in) N/A 1.5 | Top Rib Opening (in) N/A 2 1/2 | Bottom Rib Opening (in) N/A 1.75 | Pitch (in) N/A 6 | Thickness (gauge) N/A 20 | Thickness (in) N/A 0.0358 | Weight Per Square Foot (lb) N/A 2.03 | Type N/A Composite/Embossed | Finish N/A Bare Galvanized Painted |
Drawing
|
Request Quote |
| 1 1/2 X 18 GA METAL DECKING (COMP) 1 1/2 X 18 GA METAL DECKING (COMP)/Asset/Embossed-Metal-Decking-Model.png | Depth (in) N/A 1.5 | Top Rib Opening (in) N/A 2 1/2 | Bottom Rib Opening (in) N/A 1.75 | Pitch (in) N/A 6 | Thickness (gauge) N/A 18 | Thickness (in) N/A 0.0474 | Weight Per Square Foot (lb) N/A 2.47 | Type N/A Composite/Embossed | Finish N/A Bare Galvanized Painted |
Drawing
|
Request Quote |
| 1 1/2 X 16 GA METAL DECKING (COMP) 1 1/2 X 16 GA METAL DECKING (COMP)/Asset/Embossed-Metal-Decking-Model.png | Depth (in) N/A 1.5 | Top Rib Opening (in) N/A 2 1/2 | Bottom Rib Opening (in) N/A 1.75 | Pitch (in) N/A 6 | Thickness (gauge) N/A 16 | Thickness (in) N/A 0.0598 | Weight Per Square Foot (lb) N/A 3.54 | Type N/A Composite/Embossed | Finish N/A Bare Galvanized Painted |
Drawing
|
Request Quote |
| 2 X 20 GA METAL DECKING (COMP) 2 X 20 GA METAL DECKING (COMP)/Asset/Embossed-Metal-Decking-Model.png | Depth (in) N/A 2 | Top Rib Opening (in) N/A 7 | Bottom Rib Opening (in) N/A 5 | Pitch (in) N/A 12 | Thickness (gauge) N/A 20 | Thickness (in) N/A 0.0358 | Weight Per Square Foot (lb) N/A 1.97 | Type N/A Composite/Embossed | Finish N/A Bare Galvanized Painted |
Drawing
|
Request Quote |
| 2 X 18 GA METAL DECKING (COMP) 2 X 18 GA METAL DECKING (COMP)/Asset/Embossed-Metal-Decking-Model.png | Depth (in) N/A 2 | Top Rib Opening (in) N/A 7 | Bottom Rib Opening (in) N/A 5 | Pitch (in) N/A 12 | Thickness (gauge) N/A 18 | Thickness (in) N/A 0.0474 | Weight Per Square Foot (lb) N/A 3.04 | Type N/A Composite/Embossed | Finish N/A Bare Galvanized Painted |
Drawing
|
Request Quote |
| 2 X 16 GA METAL DECKING (COMP) 2 X 16 GA METAL DECKING (COMP)/Asset/Embossed-Metal-Decking-Model.png | Depth (in) N/A 2 | Top Rib Opening (in) N/A 7 | Bottom Rib Opening (in) N/A 5 | Pitch (in) N/A 12 | Thickness (gauge) N/A 16 | Thickness (in) N/A 0.0598 | Weight Per Square Foot (lb) N/A 3.159 | Type N/A Composite/Embossed | Finish N/A Bare Galvanized Painted |
Drawing
|
Request Quote |
| 3 X 20 GA METAL DECKING (COMP) 3 X 20 GA METAL DECKING (COMP)/Asset/Embossed-Metal-Decking-Model.png | Depth (in) N/A 3 | Top Rib Opening (in) N/A 7 1/8 | Bottom Rib Opening (in) N/A 5 | Pitch (in) N/A 12 | Thickness (gauge) N/A 20 | Thickness (in) N/A 0.0358 | Weight Per Square Foot (lb) N/A 2.07 | Type N/A Composite/Embossed | Finish N/A Bare Galvanized Painted |
Drawing
|
Request Quote |
| 3 X 18 GA METAL DECKING (COMP) 3 X 18 GA METAL DECKING (COMP)/Asset/Embossed-Metal-Decking-Model.png | Depth (in) N/A 3 | Top Rib Opening (in) N/A 7 1/8 | Bottom Rib Opening (in) N/A 5 | Pitch (in) N/A 12 | Thickness (gauge) N/A 18 | Thickness (in) N/A 0.0474 | Weight Per Square Foot (lb) N/A 2.749 | Type N/A Composite/Embossed | Finish N/A Bare Galvanized Painted |
Drawing
|
Request Quote |
| 3 X 16 GA METAL DECKING (COMP) 3 X 16 GA METAL DECKING (COMP)/Asset/Embossed-Metal-Decking-Model.png | Depth (in) N/A 3 | Top Rib Opening (in) N/A 7 1/8 | Bottom Rib Opening (in) N/A 5 | Pitch (in) N/A 12 | Thickness (gauge) N/A 16 | Thickness (in) N/A 0.0598 | Weight Per Square Foot (lb) N/A 3.711 | Type N/A Composite/Embossed | Finish N/A Bare Galvanized Painted |
Drawing
|
Request Quote |
