Traction Tread Planks
Grating

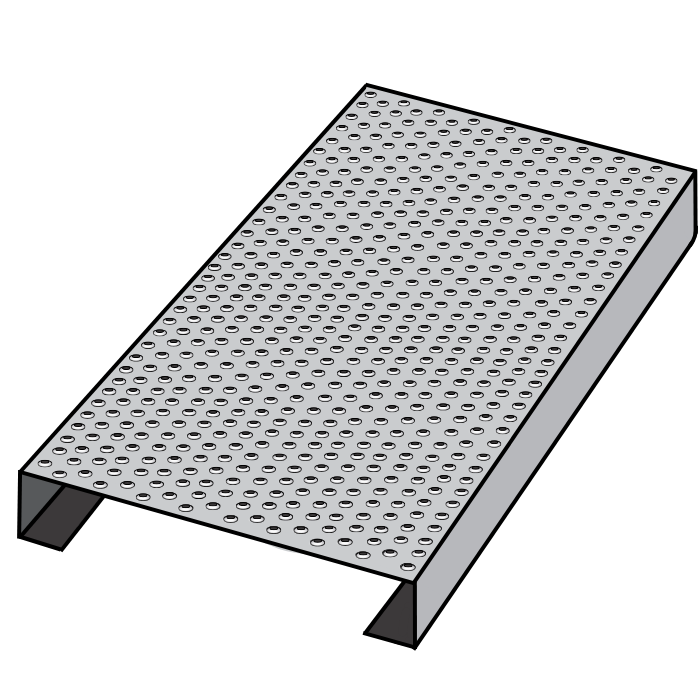

Traction Tread is a slip-resistant metal plank featuring a perforated, raised-button surface designed for secure footing in all directions. It is available with optional nosing and end plates for improved traction and simplified installation. Traction Tread can be supplied as plank grating or as ready-to-install stair treads for industrial walkways, platforms, and stair systems.
Item Name |
Length A (in) |
Length B (in) |
Thickness of Material (in) |
Thickness of Material (gauge) |
Material |
Type |
Finish |
Weight Per Square Foot (lb) |
Drawing |
Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|
| 7" WIDE X 1 1/2" DEEP (13 GA) TRACTION TREAD PLANK 7" WIDE X 1 1/2" DEEP (13 GA) TRACTION TREAD PLANK/Asset/Traction-Tread-Model.png | Length A (in) N/A 7 | Length B (in) N/A 1.5 | Thickness of Material (in) N/A 0.090 | Thickness of Material (gauge) N/A 13 | Material N/A Carbon Steel | Type N/A Raised Perforation | Finish N/A Galvanized | Weight Per Square Foot (lb) N/A 3.4 |
Drawing
 |
Request Quote |
| 7" WIDE X 1 1/2" DEEP (11 GA) TRACTION TREAD PLANK 7" WIDE X 1 1/2" DEEP (11 GA) TRACTION TREAD PLANK/Asset/Traction-Tread-Model.png | Length A (in) N/A 7 | Length B (in) N/A 1.5 | Thickness of Material (in) N/A 0.120 | Thickness of Material (gauge) N/A 11 | Material N/A Carbon Steel | Type N/A Raised Perforation | Finish N/A Galvanized | Weight Per Square Foot (lb) N/A 4.72 |
Drawing
|
Request Quote |
| 7" WIDE X 2" DEEP (13 GA) TRACTION TREAD PLANK 7" WIDE X 2" DEEP (13 GA) TRACTION TREAD PLANK/Asset/Traction-Tread-Model.png | Length A (in) N/A 7 | Length B (in) N/A 2 | Thickness of Material (in) N/A 0.090 | Thickness of Material (gauge) N/A 13 | Material N/A Carbon Steel | Type N/A Raised Perforation | Finish N/A Galvanized | Weight Per Square Foot (lb) N/A 3.71 |
Drawing
|
Request Quote |
| 7" WIDE X 2" DEEP (11 GA) TRACTION TREAD PLANK 7" WIDE X 2" DEEP (11 GA) TRACTION TREAD PLANK/Asset/Traction-Tread-Model.png | Length A (in) N/A 7 | Length B (in) N/A 2 | Thickness of Material (in) N/A 0.120 | Thickness of Material (gauge) N/A 11 | Material N/A Carbon Steel | Type N/A Raised Perforation | Finish N/A Galvanized | Weight Per Square Foot (lb) N/A 5.15 |
Drawing
|
Request Quote |
| 10" WIDE X 1 1/2" DEEP (13 GA) TRACTION TREAD PLANK 10" WIDE X 1 1/2" DEEP (13 GA) TRACTION TREAD PLANK/Asset/Traction-Tread-Model.png | Length A (in) N/A 10 | Length B (in) N/A 1.5 | Thickness of Material (in) N/A 0.090 | Thickness of Material (gauge) N/A 13 | Material N/A Carbon Steel | Type N/A Raised Perforation | Finish N/A Galvanized | Weight Per Square Foot (lb) N/A 4.32 |
Drawing
|
Request Quote |
| 10" WIDE X 1 1/2" DEEP (11 GA) TRACTION TREAD PLANK 10" WIDE X 1 1/2" DEEP (11 GA) TRACTION TREAD PLANK/Asset/Traction-Tread-Model.png | Length A (in) N/A 10 | Length B (in) N/A 1.5 | Thickness of Material (in) N/A 0.120 | Thickness of Material (gauge) N/A 11 | Material N/A Carbon Steel | Type N/A Raised Perforation | Finish N/A Galvanized | Weight Per Square Foot (lb) N/A 6.01 |
Drawing
|
Request Quote |
| 10" WIDE X 2" DEEP (13 GA) TRACTION TREAD PLANK 10" WIDE X 2" DEEP (13 GA) TRACTION TREAD PLANK/Asset/Traction-Tread-Model.png | Length A (in) N/A 10 | Length B (in) N/A 2 | Thickness of Material (in) N/A 0.090 | Thickness of Material (gauge) N/A 13 | Material N/A Carbon Steel | Type N/A Raised Perforation | Finish N/A Galvanized | Weight Per Square Foot (lb) N/A 4.63 |
Drawing
|
Request Quote |
| 10" WIDE X 2" DEEP (11 GA) TRACTION TREAD PLANK 10" WIDE X 2" DEEP (11 GA) TRACTION TREAD PLANK/Asset/Traction-Tread-Model.png | Length A (in) N/A 10 | Length B (in) N/A 2 | Thickness of Material (in) N/A 0.120 | Thickness of Material (gauge) N/A 11 | Material N/A Carbon Steel | Type N/A Raised Perforation | Finish N/A Galvanized | Weight Per Square Foot (lb) N/A 6.44 |
Drawing
|
Request Quote |
| 12" WIDE X 1 1/2" DEEP (13 GA) TRACTION TREAD PLANK 12" WIDE X 1 1/2" DEEP (13 GA) TRACTION TREAD PLANK/Asset/Traction-Tread-Model.png | Length A (in) N/A 12 | Length B (in) N/A 1.5 | Thickness of Material (in) N/A 0.090 | Thickness of Material (gauge) N/A 13 | Material N/A Carbon Steel | Type N/A Raised Perforation | Finish N/A Galvanized | Weight Per Square Foot (lb) N/A 4.93 |
Drawing
|
Request Quote |
| 12" WIDE X 1 1/2" DEEP (11 GA) TRACTION TREAD PLANK 12" WIDE X 1 1/2" DEEP (11 GA) TRACTION TREAD PLANK/Asset/Traction-Tread-Model.png | Length A (in) N/A 12 | Length B (in) N/A 1.5 | Thickness of Material (in) N/A 0.120 | Thickness of Material (gauge) N/A 11 | Material N/A Carbon Steel | Type N/A Raised Perforation | Finish N/A Galvanized | Weight Per Square Foot (lb) N/A 6.9 |
Drawing
|
Request Quote |
| 12" WIDE X 2" DEEP (13 GA) TRACTION TREAD PLANK 12" WIDE X 2" DEEP (13 GA) TRACTION TREAD PLANK/Asset/Traction-Tread-Model.png | Length A (in) N/A 12 | Length B (in) N/A 2 | Thickness of Material (in) N/A 0.090 | Thickness of Material (gauge) N/A 13 | Material N/A Carbon Steel | Type N/A Raised Perforation | Finish N/A Galvanized | Weight Per Square Foot (lb) N/A 5.24 |
Drawing
|
Request Quote |
| 12" WIDE X 2" DEEP (11 GA) TRACTION TREAD PLANK 12" WIDE X 2" DEEP (11 GA) TRACTION TREAD PLANK/Asset/Traction-Tread-Model.png | Length A (in) N/A 12 | Length B (in) N/A 2 | Thickness of Material (in) N/A 0.120 | Thickness of Material (gauge) N/A 11 | Material N/A Carbon Steel | Type N/A Raised Perforation | Finish N/A Galvanized | Weight Per Square Foot (lb) N/A 7.3 |
Drawing
|
