Steel Bar Gratings
Grating

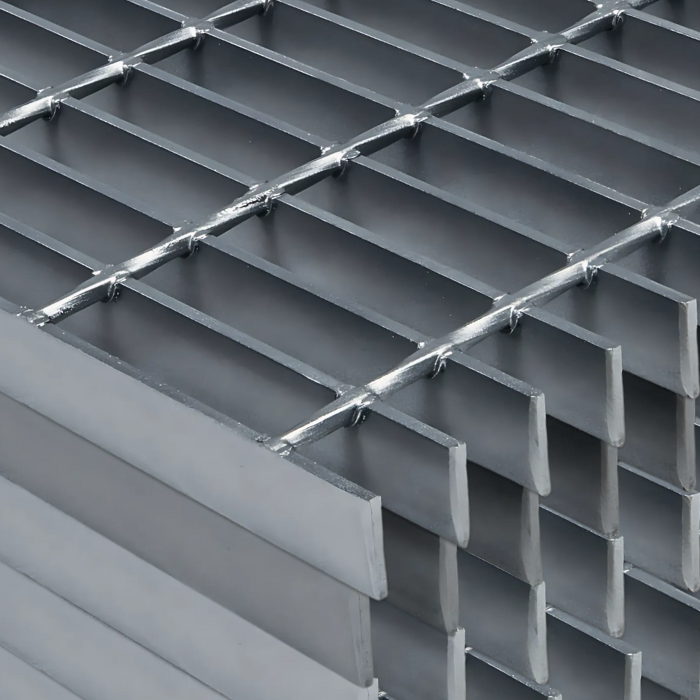

Steel Grating is a robust, open-grid flooring system made from steel bars and offered in smooth or serrated surfaces for varying levels of slip resistance and available coatings.
Item Name |
Length A (in) |
Length B (in) |
Dimensions (in) |
Material |
Type |
Finish |
Weight Per Square Foot (lb) |

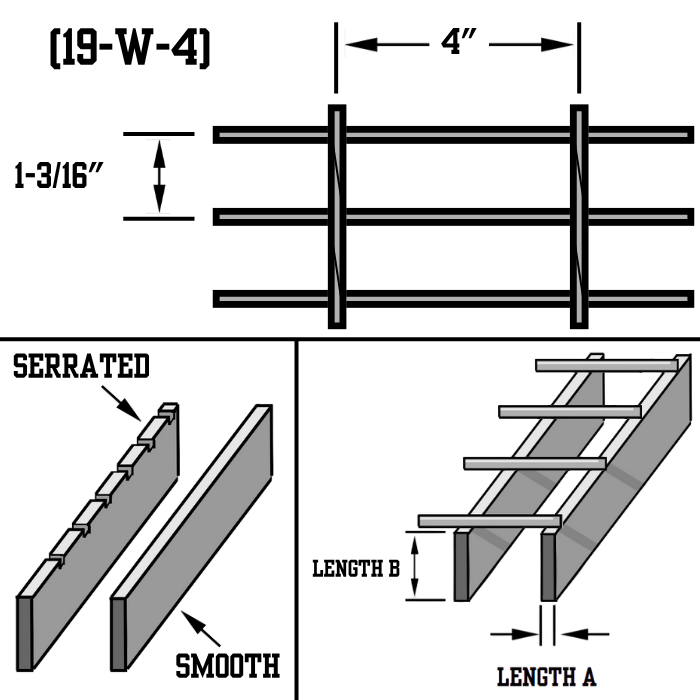

Drawing |
Request Quote |
|---|---|---|---|---|---|---|---|---|---|
| 1/8 X 3/4 (19W4) STEEL BAR GRATING 1/8 X 3/4 (19W4) STEEL BAR GRATING/Asset/Grating.png | Length A (in) N/A 1/8 | Length B (in) N/A 3/4 | Dimensions (in) N/A 36 x 240 | Material N/A Carbon Steel | Type N/A Smooth or Serrated | Finish N/A Unpainted, Painted, or Galvanized | Weight Per Square Foot (lb) N/A 4.1 |
Drawing
 |
Request Quote |
| 1/8 X 1 (19W4) STEEL BAR GRATING 1/8 X 1 (19W4) STEEL BAR GRATING/Asset/Grating.png | Length A (in) N/A 1/8 | Length B (in) N/A 1 | Dimensions (in) N/A 36 x 240 | Material N/A Carbon Steel | Type N/A Smooth or Serrated | Finish N/A Unpainted, Painted, or Galvanized | Weight Per Square Foot (lb) N/A 5.155 |
Drawing
|
Request Quote |
| 1/8 X 1 1/4 (19W4) STEEL BAR GRATING 1/8 X 1 1/4 (19W4) STEEL BAR GRATING/Asset/Grating.png | Length A (in) N/A 1/8 | Length B (in) N/A 1 1/4 | Dimensions (in) N/A 36 x 240 | Material N/A Carbon Steel | Type N/A Smooth or Serrated | Finish N/A Unpainted, Painted, or Galvanized | Weight Per Square Foot (lb) N/A 6.3 |
Drawing
|
Request Quote |
| 1/8 X 1 1/2 (19W4) STEEL BAR GRATING 1/8 X 1 1/2 (19W4) STEEL BAR GRATING/Asset/Grating.png | Length A (in) N/A 1/8 | Length B (in) N/A 1.5 | Dimensions (in) N/A 36 x 240 | Material N/A Carbon Steel | Type N/A Smooth or Serrated | Finish N/A Unpainted, Painted, or Galvanized | Weight Per Square Foot (lb) N/A 7.4 |
Drawing
|
Request Quote |
| 3/16 X 3/4 (19W4) STEEL BAR GRATING 3/16 X 3/4 (19W4) STEEL BAR GRATING/Asset/Grating.png | Length A (in) N/A 3/16 | Length B (in) N/A 3/4 | Dimensions (in) N/A 36 x 240 | Material N/A Carbon Steel | Type N/A Smooth or Serrated | Finish N/A Unpainted, Painted, or Galvanized | Weight Per Square Foot (lb) N/A 5.7 |
Drawing
|
Request Quote |
| 3/16 X 1 (19W4) STEEL BAR GRATING 3/16 X 1 (19W4) STEEL BAR GRATING/Asset/Grating.png | Length A (in) N/A 3/16 | Length B (in) N/A 1 | Dimensions (in) N/A 36 x 240 | Material N/A Carbon Steel | Type N/A Smooth or Serrated | Finish N/A Unpainted, Painted, or Galvanized | Weight Per Square Foot (lb) N/A 7.358 |
Drawing
|
Request Quote |
| 3/16 X 1 1/4 (19W4) STEEL BAR GRATING 3/16 X 1 1/4 (19W4) STEEL BAR GRATING/Asset/Grating.png | Length A (in) N/A 3/16 | Length B (in) N/A 1 1/4 | Dimensions (in) N/A 36 x 240 | Material N/A Carbon Steel | Type N/A Smooth or Serrated | Finish N/A Unpainted, Painted, or Galvanized | Weight Per Square Foot (lb) N/A 9.029 |
Drawing
|
Request Quote |
| 3/16 X 1 1/2 (19W4) STEEL BAR GRATING 3/16 X 1 1/2 (19W4) STEEL BAR GRATING/Asset/Grating.png | Length A (in) N/A 3/16 | Length B (in) N/A 1.5 | Dimensions (in) N/A 36 x 240 | Material N/A Carbon Steel | Type N/A Smooth or Serrated | Finish N/A Unpainted, Painted, or Galvanized | Weight Per Square Foot (lb) N/A 10.944 |
Drawing
|
Request Quote |
| 3/16 X 2 (19W4) STEEL BAR GRATING 3/16 X 2 (19W4) STEEL BAR GRATING/Asset/Grating.png | Length A (in) N/A 3/16 | Length B (in) N/A 2 | Dimensions (in) N/A 36 x 240 | Material N/A Carbon Steel | Type N/A Smooth or Serrated | Finish N/A Unpainted, Painted, or Galvanized | Weight Per Square Foot (lb) N/A 14.1 |
Drawing
|
Request Quote |
| 3/16 X 2 1/2 (19W4) STEEL BAR GRATING 3/16 X 2 1/2 (19W4) STEEL BAR GRATING/Asset/Grating.png | Length A (in) N/A 3/16 | Length B (in) N/A 2 1/2 | Dimensions (in) N/A 36 x 240 | Material N/A Carbon Steel | Type N/A Smooth or Serrated | Finish N/A Unpainted, Painted, or Galvanized | Weight Per Square Foot (lb) N/A 17.4 |
Drawing
|
Request Quote |
| 1/4 X 1 1/2 (19W4) STEEL BAR GRATING 1/4 X 1 1/2 (19W4) STEEL BAR GRATING/Asset/Grating.png | Length A (in) N/A 1/4 | Length B (in) N/A 1.5 | Dimensions (in) N/A 36 x 240 | Material N/A Carbon Steel | Type N/A Smooth or Serrated | Finish N/A Unpainted, Painted, or Galvanized | Weight Per Square Foot (lb) N/A 14.3 |
Drawing
|
Request Quote |
| 1/4 X 1 3/4 (19W4) STEEL BAR GRATING 1/4 X 1 3/4 (19W4) STEEL BAR GRATING/Asset/Grating.png | Length A (in) N/A 1/4 | Length B (in) N/A 1 3/4 | Dimensions (in) N/A 36 x 240 | Material N/A Carbon Steel | Type N/A Smooth or Serrated | Finish N/A Unpainted, Painted, or Galvanized | Weight Per Square Foot (lb) N/A 16.5 |
Drawing
|
Request Quote |
