Grip Struts
Grating

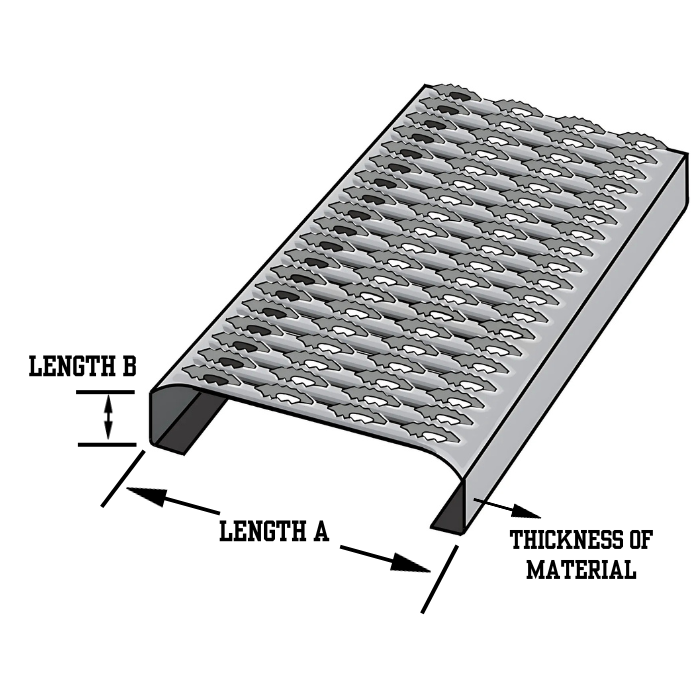

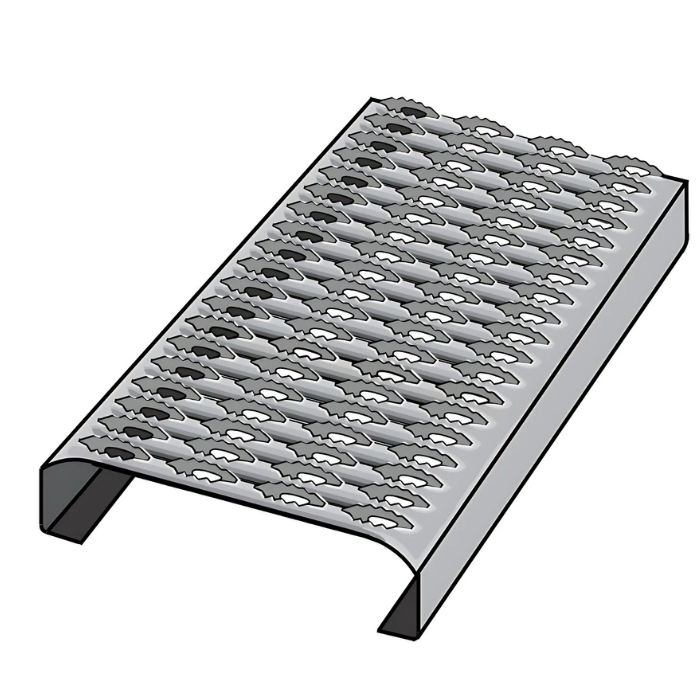

Grip Strut-also referred to as safety grating-is a high-strength, slip-resistant metal plank with serrated diamond openings, available with diamond nosing and end plates for improved traction and ease of installation. It is offered both as plank grating and as ready-to-install stair treads for industrial walkways, platforms, and stair assemblies.
Item Name |
Length A (in) |
Length B (in) |
Thickness of Material (in) |
Thickness of Material (gauge) |
Material |
Type |
Finish |
Weight Per Square Foot (lb) |
Drawing |
Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|
| 4 3/4" WIDE X 1 1/2" DEEP (14 GA) GRIP STRUT 4 3/4" WIDE X 1 1/2" DEEP (14 GA) GRIP STRUT/Asset/Grip-Strut-Model.png | Length A (in) N/A 4.75 | Length B (in) N/A 1.5 | Thickness of Material (in) N/A 0.075 | Thickness of Material (gauge) N/A 14 | Material N/A Carbon Steel | Type N/A Serrated | Finish N/A Galvanized | Weight Per Square Foot (lb) N/A 2.3 |
Drawing
 |
Request Quote |
| 4 3/4" WIDE X 1 1/2" DEEP (12 GA) GRIP STRUT 4 3/4" WIDE X 1 1/2" DEEP (12 GA) GRIP STRUT/Asset/Grip-Strut-Model.png | Length A (in) N/A 4.75 | Length B (in) N/A 1.5 | Thickness of Material (in) N/A 0.105 | Thickness of Material (gauge) N/A 12 | Material N/A Carbon Steel | Type N/A Serrated | Finish N/A Galvanized | Weight Per Square Foot (lb) N/A 3.2 |
Drawing
|
Request Quote |
| 4 3/4" WIDE X 2" DEEP (14 GA) GRIP STRUT 4 3/4" WIDE X 2" DEEP (14 GA) GRIP STRUT/Asset/Grip-Strut-Model.png | Length A (in) N/A 4.75 | Length B (in) N/A 2 | Thickness of Material (in) N/A 0.075 | Thickness of Material (gauge) N/A 14 | Material N/A Carbon Steel | Type N/A Serrated | Finish N/A Galvanized | Weight Per Square Foot (lb) N/A 2.6 |
Drawing
|
Request Quote |
| 4 3/4" WIDE X 2" DEEP (12 GA) GRIP STRUT 4 3/4" WIDE X 2" DEEP (12 GA) GRIP STRUT/Asset/Grip-Strut-Model.png | Length A (in) N/A 4.75 | Length B (in) N/A 2 | Thickness of Material (in) N/A 0.105 | Thickness of Material (gauge) N/A 12 | Material N/A Carbon Steel | Type N/A Serrated | Finish N/A Galvanized | Weight Per Square Foot (lb) N/A 3.6 |
Drawing
|
Request Quote |
| 7" WIDE X 1 1/2" DEEP (14 GA) GRIP STRUT 7" WIDE X 1 1/2" DEEP (14 GA) GRIP STRUT/Asset/Grip-Strut-Model.png | Length A (in) N/A 7 | Length B (in) N/A 1.5 | Thickness of Material (in) N/A 0.075 | Thickness of Material (gauge) N/A 14 | Material N/A Carbon Steel | Type N/A Serrated | Finish N/A Galvanized | Weight Per Square Foot (lb) N/A 3 |
Drawing
|
Request Quote |
| 7" WIDE X 1 1/2" DEEP (12 GA) GRIP STRUT 7" WIDE X 1 1/2" DEEP (12 GA) GRIP STRUT/Asset/Grip-Strut-Model.png | Length A (in) N/A 7 | Length B (in) N/A 1.5 | Thickness of Material (in) N/A 0.105 | Thickness of Material (gauge) N/A 12 | Material N/A Carbon Steel | Type N/A Serrated | Finish N/A Galvanized | Weight Per Square Foot (lb) N/A 4.1 |
Drawing
|
Request Quote |
| 7" WIDE X 2" DEEP (14 GA) GRIP STRUT 7" WIDE X 2" DEEP (14 GA) GRIP STRUT/Asset/Grip-Strut-Model.png | Length A (in) N/A 7 | Length B (in) N/A 2 | Thickness of Material (in) N/A 0.075 | Thickness of Material (gauge) N/A 14 | Material N/A Carbon Steel | Type N/A Serrated | Finish N/A Galvanized | Weight Per Square Foot (lb) N/A 3.2 |
Drawing
|
Request Quote |
| 7" WIDE X 2" DEEP (12 GA) GRIP STRUT 7" WIDE X 2" DEEP (12 GA) GRIP STRUT/Asset/Grip-Strut-Model.png | Length A (in) N/A 7 | Length B (in) N/A 2 | Thickness of Material (in) N/A 0.105 | Thickness of Material (gauge) N/A 12 | Material N/A Carbon Steel | Type N/A Serrated | Finish N/A Galvanized | Weight Per Square Foot (lb) N/A 4.5 |
Drawing
|
Request Quote |
| 9 1/2" WIDE X 1 1/2" DEEP (14 GA) GRIP STRUT 9 1/2" WIDE X 1 1/2" DEEP (14 GA) GRIP STRUT/Asset/Grip-Strut-Model.png | Length A (in) N/A 9.5 | Length B (in) N/A 1.5 | Thickness of Material (in) N/A 0.075 | Thickness of Material (gauge) N/A 14 | Material N/A Carbon Steel | Type N/A Serrated | Finish N/A Galvanized | Weight Per Square Foot (lb) N/A 3.6 |
Drawing
|
Request Quote |
| 9 1/2" WIDE X 1 1/2" DEEP (12 GA) GRIP STRUT 9 1/2" WIDE X 1 1/2" DEEP (12 GA) GRIP STRUT/Asset/Grip-Strut-Model.png | Length A (in) N/A 9.5 | Length B (in) N/A 1.5 | Thickness of Material (in) N/A 0.105 | Thickness of Material (gauge) N/A 12 | Material N/A Carbon Steel | Type N/A Serrated | Finish N/A Galvanized | Weight Per Square Foot (lb) N/A 5 |
Drawing
|
Request Quote |
| 9 1/2" WIDE X 2" DEEP (14 GA) GRIP STRUT 9 1/2" WIDE X 2" DEEP (14 GA) GRIP STRUT/Asset/Grip-Strut-Model.png | Length A (in) N/A 9.5 | Length B (in) N/A 2 | Thickness of Material (in) N/A 0.075 | Thickness of Material (gauge) N/A 14 | Material N/A Carbon Steel | Type N/A Serrated | Finish N/A Galvanized | Weight Per Square Foot (lb) N/A 3.8 |
Drawing
|
Request Quote |
| 9 1/2" WIDE X 2" DEEP (12 GA) GRIP STRUT 9 1/2" WIDE X 2" DEEP (12 GA) GRIP STRUT/Asset/Grip-Strut-Model.png | Length A (in) N/A 9.5 | Length B (in) N/A 2 | Thickness of Material (in) N/A 0.105 | Thickness of Material (gauge) N/A 12 | Material N/A Carbon Steel | Type N/A Serrated | Finish N/A Galvanized | Weight Per Square Foot (lb) N/A 5.4 |
Drawing
|
Request Quote |
| 11 3/4" WIDE X 1 1/2" DEEP (14 GA) GRIP STRUT 11 3/4" WIDE X 1 1/2" DEEP (14 GA) GRIP STRUT/Asset/Grip-Strut-Model.png | Length A (in) N/A 11.75 | Length B (in) N/A 1.5 | Thickness of Material (in) N/A 0.075 | Thickness of Material (gauge) N/A 14 | Material N/A Carbon Steel | Type N/A Serrated | Finish N/A Galvanized | Weight Per Square Foot (lb) N/A 4.2 |
Drawing
|
Request Quote |
| 11 3/4" WIDE X 1 1/2" DEEP (12 GA) GRIP STRUT 11 3/4" WIDE X 1 1/2" DEEP (12 GA) GRIP STRUT/Asset/Grip-Strut-Model.png | Length A (in) N/A 11.75 | Length B (in) N/A 1.5 | Thickness of Material (in) N/A 0.105 | Thickness of Material (gauge) N/A 12 | Material N/A Carbon Steel | Type N/A Serrated | Finish N/A Galvanized | Weight Per Square Foot (lb) N/A 5.9 |
Drawing
|
Request Quote |
| 11 3/4" WIDE X 2" DEEP (14 GA) GRIP STRUT 11 3/4" WIDE X 2" DEEP (14 GA) GRIP STRUT/Asset/Grip-Strut-Model.png | Length A (in) N/A 11.75 | Length B (in) N/A 2 | Thickness of Material (in) N/A 0.075 | Thickness of Material (gauge) N/A 14 | Material N/A Carbon Steel | Type N/A Serrated | Finish N/A Galvanized | Weight Per Square Foot (lb) N/A 4.4 |
Drawing
|
Request Quote |
| 11 3/4" WIDE X 2" DEEP (12 GA) GRIP STRUT 11 3/4" WIDE X 2" DEEP (12 GA) GRIP STRUT/Asset/Grip-Strut-Model.png | Length A (in) N/A 11.75 | Length B (in) N/A 2 | Thickness of Material (in) N/A 0.105 | Thickness of Material (gauge) N/A 12 | Material N/A Carbon Steel | Type N/A Serrated | Finish N/A Galvanized | Weight Per Square Foot (lb) N/A 6.2 |
Drawing
|
Request Quote |
| 18 3/4" WIDE X 1 1/2" DEEP (14 GA) GRIP STRUT 18 3/4" WIDE X 1 1/2" DEEP (14 GA) GRIP STRUT/Asset/Grip-Strut-Model.png | Length A (in) N/A 18 3/4 | Length B (in) N/A 1.5 | Thickness of Material (in) N/A 0.075 | Thickness of Material (gauge) N/A 14 | Material N/A Carbon Steel | Type N/A Serrated | Finish N/A Galvanized | Weight Per Square Foot (lb) N/A 6.1 |
Drawing
|
Request Quote |
| 18 3/4" WIDE X 1 1/2" DEEP (12 GA) GRIP STRUT 18 3/4" WIDE X 1 1/2" DEEP (12 GA) GRIP STRUT/Asset/Grip-Strut-Model.png | Length A (in) N/A 18 3/4 | Length B (in) N/A 1.5 | Thickness of Material (in) N/A 0.105 | Thickness of Material (gauge) N/A 12 | Material N/A Carbon Steel | Type N/A Serrated | Finish N/A Galvanized | Weight Per Square Foot (lb) N/A 8.5 |
Drawing
|
Request Quote |
| 18 3/4" WIDE X 2" DEEP (14 GA) GRIP STRUT 18 3/4" WIDE X 2" DEEP (14 GA) GRIP STRUT/Asset/Grip-Strut-Model.png | Length A (in) N/A 18 3/4 | Length B (in) N/A 2 | Thickness of Material (in) N/A 0.075 | Thickness of Material (gauge) N/A 14 | Material N/A Carbon Steel | Type N/A Serrated | Finish N/A Galvanized | Weight Per Square Foot (lb) N/A 6.3 |
Drawing
|
Request Quote |
| 18 3/4" WIDE X 2" DEEP (12 GA) GRIP STRUT 18 3/4" WIDE X 2" DEEP (12 GA) GRIP STRUT/Asset/Grip-Strut-Model.png | Length A (in) N/A 18 3/4 | Length B (in) N/A 2 | Thickness of Material (in) N/A 0.105 | Thickness of Material (gauge) N/A 12 | Material N/A Carbon Steel | Type N/A Serrated | Finish N/A Galvanized | Weight Per Square Foot (lb) N/A 8.9 |
Drawing
|
Request Quote |
| 24" WIDE X 2" DEEP (12 GA) GRIP STRUT 24" WIDE X 2" DEEP (12 GA) GRIP STRUT/Asset/Grip-Strut-Model.png | Length A (in) N/A 24 | Length B (in) N/A 2 | Thickness of Material (in) N/A 0.105 | Thickness of Material (gauge) N/A 12 | Material N/A Carbon Steel | Type N/A Serrated | Finish N/A Galvanized | Weight Per Square Foot (lb) N/A 10.4 |
Drawing
|
Request Quote |
