Raised Expanded Metal Sheets
Expanded Metal
Raised Expanded Metal Sheet features a textured surface for enhanced grip and is commonly used for guards, screens, and decorative panels. Although expanded sheets in heavier gauge or thickness can serve in supported areas, they are not designed for structural walkways or stair treads. Aluminum and stainless steel options are available upon request.
Item Name |

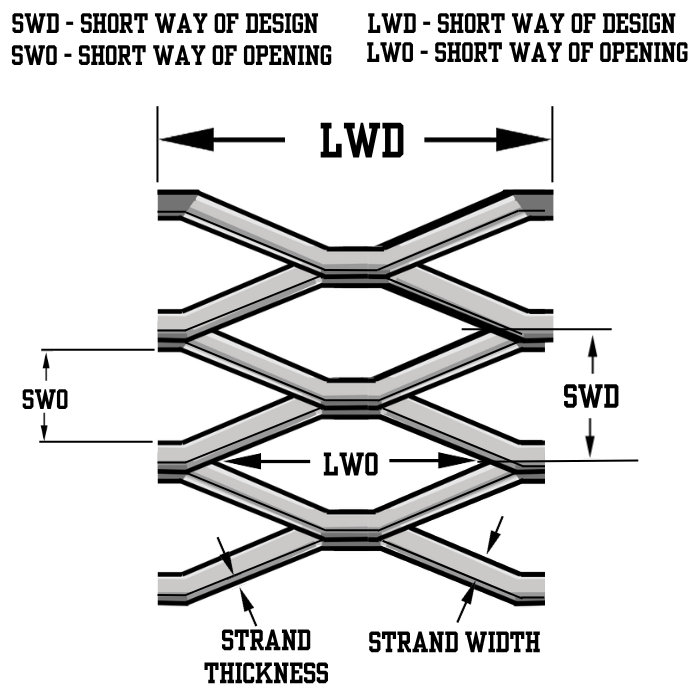

Short Way of Diamond (SWD) (in) |
Long Way of Diamond (LWD) (in) |
Short Way of Opening (SWO) (in) |
Long Way of Opening (LWO) (in) |
Strand Thickness (in) |
Strand Width (in) |
Weight Per Square Foot (lb) |
Material |
Finish |
Grade |
Drawing |
RFQ |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

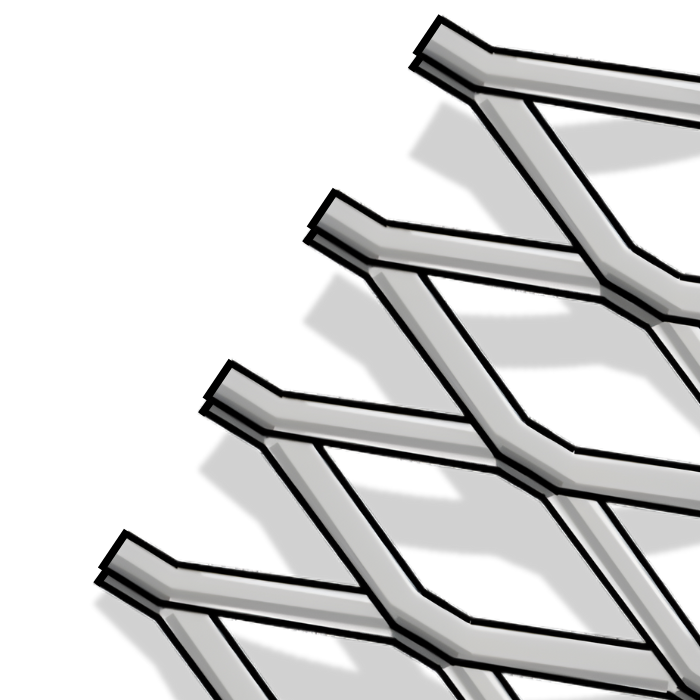

| 1/4 X 18 GA RAISED EXPANDED METAL 1/4 X 18 GA RAISED EXPANDED METAL/Asset/Raised-Expanded-Metal-Model.png | Short Way of Diamond (SWD) (in) N/A 0.312 | Long Way of Diamond (LWD) (in) N/A 1.000 | Short Way of Opening (SWO) (in) N/A 0.192 | Long Way of Opening (LWO) (in) N/A 0.616 | Strand Thickness (in) N/A 0.048 | Strand Width (in) N/A 0.072 | Weight Per Square Foot (lb) N/A 0.84 | Material N/A Carbon Steel | Finish N/A Bare | Grade N/A A1011 |
Drawing
 |
Add |
| 1/2 X 16 GA RAISED EXPANDED METAL 1/2 X 16 GA RAISED EXPANDED METAL/Asset/Raised-Expanded-Metal-Model.png | Short Way of Diamond (SWD) (in) N/A 0.500 | Long Way of Diamond (LWD) (in) N/A 1.200 | Short Way of Opening (SWO) (in) N/A 0.372 | Long Way of Opening (LWO) (in) N/A 0.938 | Strand Thickness (in) N/A 0.060 | Strand Width (in) N/A 0.087 | Weight Per Square Foot (lb) N/A 0.85 | Material N/A Carbon Steel | Finish N/A Bare | Grade N/A A1011 |
Drawing
|
Add |
| 1/2 X 13 GA RAISED EXPANDED METAL 1/2 X 13 GA RAISED EXPANDED METAL/Asset/Raised-Expanded-Metal-Model.png | Short Way of Diamond (SWD) (in) N/A 0.500 | Long Way of Diamond (LWD) (in) N/A 1.200 | Short Way of Opening (SWO) (in) N/A 0.337 | Long Way of Opening (LWO) (in) N/A 0.938 | Strand Thickness (in) N/A 0.090 | Strand Width (in) N/A 0.096 | Weight Per Square Foot (lb) N/A 1.469 | Material N/A Carbon Steel | Finish N/A Bare Galvanized | Grade N/A A1011 |
Drawing
|
Add |
| 3/4 X 13 GA RAISED EXPANDED METAL 3/4 X 13 GA RAISED EXPANDED METAL/Asset/Raised-Expanded-Metal-Model.png | Short Way of Diamond (SWD) (in) N/A 0.923 | Long Way of Diamond (LWD) (in) N/A 2.000 | Short Way of Opening (SWO) (in) N/A 0.760 | Long Way of Opening (LWO) (in) N/A 1.688 | Strand Thickness (in) N/A 0.090 | Strand Width (in) N/A 0.096 | Weight Per Square Foot (lb) N/A 0.806 | Material N/A Carbon Steel | Finish N/A Bare Galvanized | Grade N/A A1011 |
Drawing
|
Add |
| 3/4 X 9 GA RAISED EXPANDED METAL 3/4 X 9 GA RAISED EXPANDED METAL/Asset/Raised-Expanded-Metal-Model.png | Short Way of Diamond (SWD) (in) N/A 0.923 | Long Way of Diamond (LWD) (in) N/A 2.000 | Short Way of Opening (SWO) (in) N/A 0.675 | Long Way of Opening (LWO) (in) N/A 1.562 | Strand Thickness (in) N/A 0.134 | Strand Width (in) N/A 0.15 | Weight Per Square Foot (lb) N/A 1.8 | Material N/A Carbon Steel | Finish N/A Bare Galvanized | Grade N/A A1011 |
Drawing
|
Add |
| 1 1/2 X 13 GA RAISED EXPANDED METAL 1 1/2 X 13 GA RAISED EXPANDED METAL/Asset/Raised-Expanded-Metal-Model.png | Short Way of Diamond (SWD) (in) N/A 1.33 | Long Way of Diamond (LWD) (in) N/A 3 | Short Way of Opening (SWO) (in) N/A 1.16 | Long Way of Opening (LWO) (in) N/A 2.5 | Strand Thickness (in) N/A 0.090 | Strand Width (in) N/A 0.105 | Weight Per Square Foot (lb) N/A 0.605 | Material N/A Carbon Steel | Finish N/A Bare | Grade N/A A1011 |
Drawing
|
Add |
| 1 1/2 X 9 GA RAISED EXPANDED METAL 1 1/2 X 9 GA RAISED EXPANDED METAL/Asset/Raised-Expanded-Metal-Model.png | Short Way of Diamond (SWD) (in) N/A 1.33 | Long Way of Diamond (LWD) (in) N/A 3 | Short Way of Opening (SWO) (in) N/A 1.087 | Long Way of Opening (LWO) (in) N/A 2.375 | Strand Thickness (in) N/A 0.134 | Strand Width (in) N/A 0.144 | Weight Per Square Foot (lb) N/A 1.138 | Material N/A Carbon Steel | Finish N/A Bare | Grade N/A A1011 |
Drawing
|
Add |
| 1 1/2 X 6 GA RAISED EXPANDED METAL 1 1/2 X 6 GA RAISED EXPANDED METAL/Asset/Raised-Expanded-Metal-Model.png | Short Way of Diamond (SWD) (in) N/A 1.33 | Long Way of Diamond (LWD) (in) N/A 3 | Short Way of Opening (SWO) (in) N/A 0.979 | Long Way of Opening (LWO) (in) N/A 2.313 | Strand Thickness (in) N/A 0.198 | Strand Width (in) N/A 0.203 | Weight Per Square Foot (lb) N/A 2.25 | Material N/A Carbon Steel | Finish N/A Bare | Grade N/A A1011 |
Drawing
|
Add |
