Flat Expanded Metal Sheets
Expanded Metal
Flat Expanded Metal Sheet features a smooth, level surface ideal for guards, screens, infill panels, and decorative applications. While sheets in heavier gauge or thickness may be used in supported areas, flat expanded metal is generally not intended for structural walkways or stair treads. Aluminum and stainless steel options are available upon request.
Item Name |

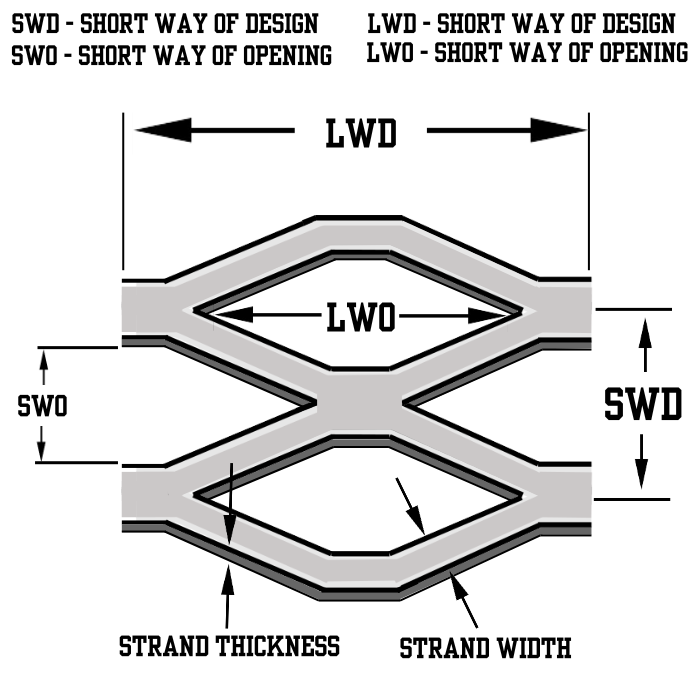

Short Way of Diamond (SWD) (in) |
Long Way of Diamond (LWD) (in) |
Short Way of Opening (SWO) (in) |
Long Way of Opening (LWO) (in) |
Strand Thickness (in) |
Strand Width (in) |
Weight Per Square Foot (lb) |
Material |
Finish |
Grade |
Drawing |
Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

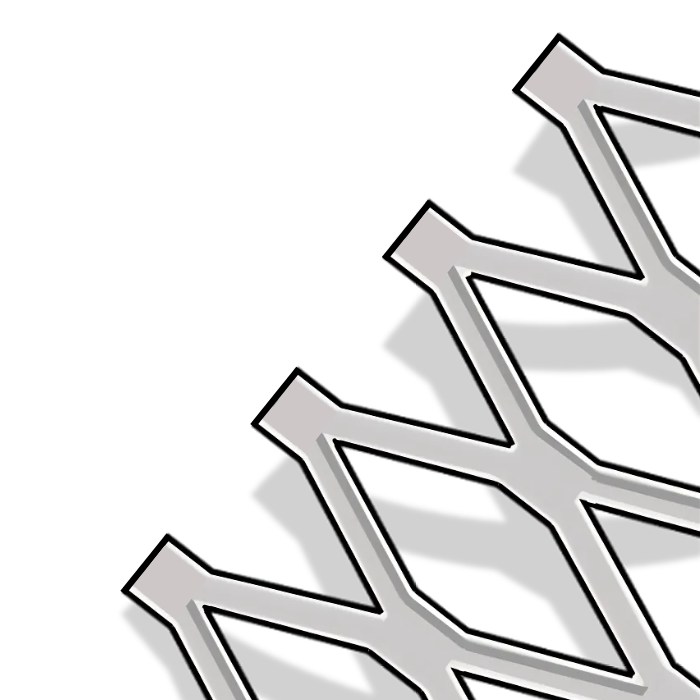

| 1/4 X 18 GA FLAT EXPANDED METAL 1/4 X 18 GA FLAT EXPANDED METAL/Asset/Flat-Expanded-Metal-Model.png | Short Way of Diamond (SWD) (in) N/A 0.312 | Long Way of Diamond (LWD) (in) N/A 1 | Short Way of Opening (SWO) (in) N/A 0.161 | Long Way of Opening (LWO) (in) N/A 0.644 | Strand Thickness (in) N/A 0.041 | Strand Width (in) N/A 0.079 | Weight Per Square Foot (lb) N/A 1.08 | Material N/A Carbon Steel | Finish N/A Bare | Grade N/A A1011 |
Drawing
 |
Request Quote |
| 1/2 X 16 GA FLAT EXPANDED METAL 1/2 X 16 GA FLAT EXPANDED METAL/Asset/Flat-Expanded-Metal-Model.png | Short Way of Diamond (SWD) (in) N/A 0.5 | Long Way of Diamond (LWD) (in) N/A 1.26 | Short Way of Opening (SWO) (in) N/A 0.304 | Long Way of Opening (LWO) (in) N/A 1 | Strand Thickness (in) N/A 0.048 | Strand Width (in) N/A 0.098 | Weight Per Square Foot (lb) N/A 0.821 | Material N/A Carbon Steel | Finish N/A Bare Galvanized | Grade N/A A1011 |
Drawing
|
Request Quote |
| 1/2 X 13 GA FLAT EXPANDED METAL 1/2 X 13 GA FLAT EXPANDED METAL/Asset/Flat-Expanded-Metal-Model.png | Short Way of Diamond (SWD) (in) N/A 0.5 | Long Way of Diamond (LWD) (in) N/A 1.26 | Short Way of Opening (SWO) (in) N/A 0.286 | Long Way of Opening (LWO) (in) N/A 1 | Strand Thickness (in) N/A 0.072 | Strand Width (in) N/A 0.107 | Weight Per Square Foot (lb) N/A 1.397 | Material N/A Carbon Steel | Finish N/A Bare Galvanized | Grade N/A A1011 |
Drawing
|
Request Quote |
| 3/4 X 13 GA FLAT EXPANDED METAL 3/4 X 13 GA FLAT EXPANDED METAL/Asset/Flat-Expanded-Metal-Model.png | Short Way of Diamond (SWD) (in) N/A 0.923 | Long Way of Diamond (LWD) (in) N/A 2.1 | Short Way of Opening (SWO) (in) N/A 0.711 | Long Way of Opening (LWO) (in) N/A 1.781 | Strand Thickness (in) N/A 0.072 | Strand Width (in) N/A 0.106 | Weight Per Square Foot (lb) N/A 0.749 | Material N/A Carbon Steel | Finish N/A Bare Galvanized | Grade N/A A1011 |
Drawing
|
Request Quote |
| 3/4 X 9 GA FLAT EXPANDED METAL 3/4 X 9 GA FLAT EXPANDED METAL/Asset/Flat-Expanded-Metal-Model.png | Short Way of Diamond (SWD) (in) N/A 0.923 | Long Way of Diamond (LWD) (in) N/A 2.1 | Short Way of Opening (SWO) (in) N/A 0.593 | Long Way of Opening (LWO) (in) N/A 1.688 | Strand Thickness (in) N/A 0.108 | Strand Width (in) N/A 0.165 | Weight Per Square Foot (lb) N/A 1.712 | Material N/A Carbon Steel | Finish N/A Bare Galvanized | Grade N/A A1011 |
Drawing
|
Request Quote |
| 1 1/2 X 13 GA FLAT EXPANDED METAL 1 1/2 X 13 GA FLAT EXPANDED METAL/Asset/Flat-Expanded-Metal-Model.png | Short Way of Diamond (SWD) (in) N/A 1.33 | Long Way of Diamond (LWD) (in) N/A 3.15 | Short Way of Opening (SWO) (in) N/A 1.098 | Long Way of Opening (LWO) (in) N/A 2.75 | Strand Thickness (in) N/A 0.072 | Strand Width (in) N/A 0.116 | Weight Per Square Foot (lb) N/A 0.576 | Material N/A Carbon Steel | Finish N/A Bare | Grade N/A A1011 |
Drawing
|
Request Quote |
| 1 1/2 X 9 GA FLAT EXPANDED METAL 1 1/2 X 9 GA FLAT EXPANDED METAL/Asset/Flat-Expanded-Metal-Model.png | Short Way of Diamond (SWD) (in) N/A 1.33 | Long Way of Diamond (LWD) (in) N/A 3.15 | Short Way of Opening (SWO) (in) N/A 1.014 | Long Way of Opening (LWO) (in) N/A 2.563 | Strand Thickness (in) N/A 0.108 | Strand Width (in) N/A 0.158 | Weight Per Square Foot (lb) N/A 1.138 | Material N/A Carbon Steel | Finish N/A Bare | Grade N/A A1011 |
Drawing
|
Request Quote |
