Junior (Bar) Channels On Central Steel Supply Company

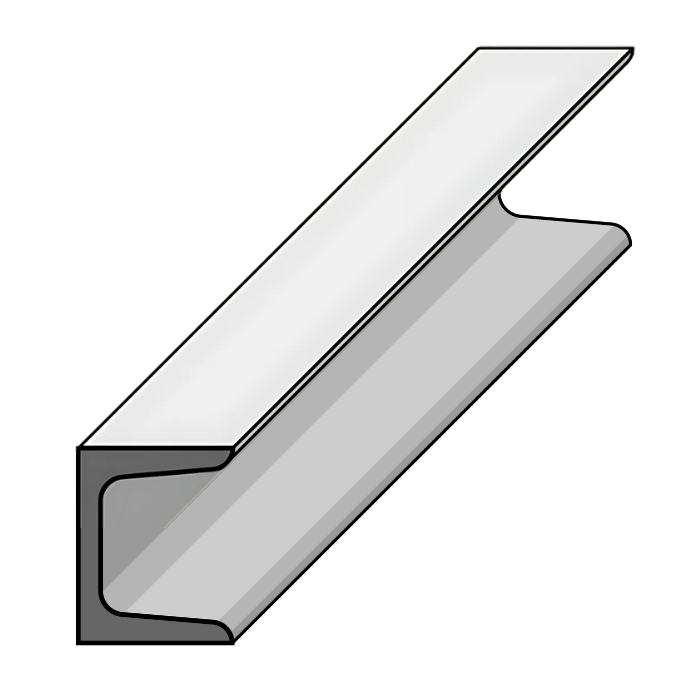

C-shaped or U-shaped Junior Bar channels used for ornamental applications. Available in multiple sizes, standard stock lengths, cut-to-length dimensions, and custom part orders.

1 - 6 of 6 | Results Per Page | View | Unit of Measure

Request Information Compare Items

Item Name	Depth of Section (in)	Flange Width (in)	Flange Thickness (in)	Web Thickness (in)	Weight Per Linear Foot (lb)	Grade	Request Quote

1 X 1/2 X 1/8 HR CHANNEL	N/A 1	N/A 1/2	N/A 1/8	N/A 1/8	N/A 0.84	N/A A36 Grade 50	Request Quote
1 1/4 X 1/2 X 1/8 HR CHANNEL	N/A 1 1/4	N/A 1/2	N/A 1/8	N/A 1/8	N/A 1	N/A A36 Grade 50	Request Quote
1 1/2 X 1/2 X 1/8 HR CHANNEL	N/A 1 1/2	N/A 1/2	N/A 1/8	N/A 1/8	N/A 1.12	N/A A36 Grade 50	Request Quote
2 X 1/2 X 1/8 HR CHANNEL	N/A 2	N/A 1/2	N/A 1/8	N/A 1/8	N/A 1.43	N/A A36 Grade 50	Request Quote
2 X 1 X 1/8 HR CHANNEL	N/A 2	N/A 1.000	N/A 1/8	N/A 1/8	N/A 1.59	N/A A36 Grade 50	Request Quote
2 X 1 X 3/16 HR CHANNEL	N/A 2	N/A 1.000	N/A 3/16	N/A 3/16	N/A 2.32	N/A A36 Grade 50	Request Quote

1 - 6 of 6 | Results Per Page | View | Unit of Measure
