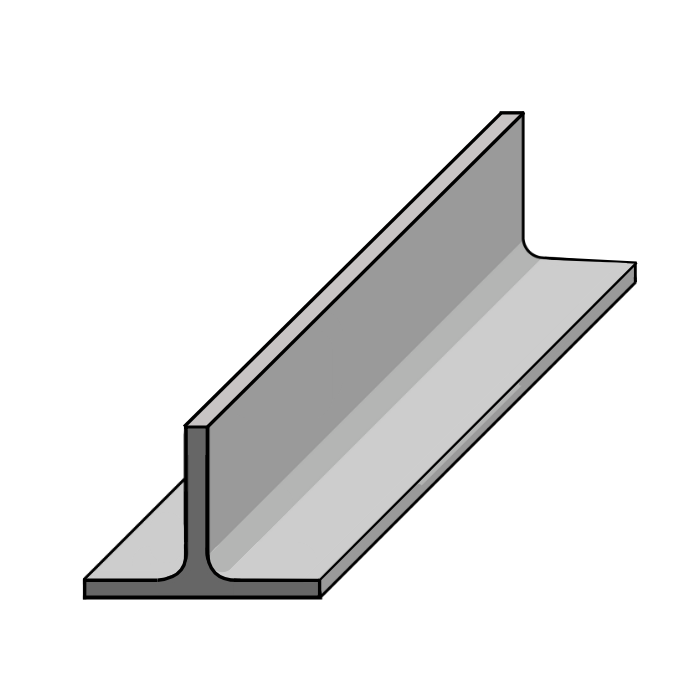

Wide T Steel Beams
Beams
T-shaped cross-section or split T's for structural support in construction and engineering. Created from the splitting of a wide flange beam across its web. Available in multiple sizes, standard stock lengths, cut-to-length dimensions, and custom part orders.
Item Name |
Depth of Section (in) |
Flange Width (in) |
Flange Thickness (in) |
Web Thickness (in) |
Weight Per Linear Foot (lb) |
Material |
Finish |
Grade |
Drawing |
RFQ |
|---|---|---|---|---|---|---|---|---|---|---|
| 2 X 6.5# WT 2 X 6.5# WT/Asset/WT-Model.png | Depth of Section (in) N/A 2.08 | Flange Width (in) N/A 4.060 | Flange Thickness (in) N/A 0.345 | Web Thickness (in) N/A 0.280 | Weight Per Linear Foot (lb) N/A 6.5 | Material N/A Carbon Steel | Finish N/A Bare | Grade N/A A992 |
Drawing
 |
Add |
| 2 1/2 X 8.0# WT 2 1/2 X 8.0# WT/Asset/WT-Model.png | Depth of Section (in) N/A 2.51 | Flange Width (in) N/A 5.000 | Flange Thickness (in) N/A 0.360 | Web Thickness (in) N/A 0.250 | Weight Per Linear Foot (lb) N/A 8 | Material N/A Carbon Steel | Finish N/A Bare | Grade N/A A992 |
Drawing
|
Add |
| 2 1/2 X 9.5# WT 2 1/2 X 9.5# WT/Asset/WT-Model.png | Depth of Section (in) N/A 2.58 | Flange Width (in) N/A 5.030 | Flange Thickness (in) N/A 0.430 | Web Thickness (in) N/A 0.270 | Weight Per Linear Foot (lb) N/A 9.50 | Material N/A Carbon Steel | Finish N/A Bare | Grade N/A A992 |
Drawing
|
Add |
| 3 X 4.5# WT 3 X 4.5# WT/Asset/WT-Model.png | Depth of Section (in) N/A 2.95 | Flange Width (in) N/A 3.940 | Flange Thickness (in) N/A 0.215 | Web Thickness (in) N/A 0.170 | Weight Per Linear Foot (lb) N/A 4.5 | Material N/A Carbon Steel | Finish N/A Bare | Grade N/A A992 |
Drawing
|
Add |
| 3 X 6.0# WT 3 X 6.0# WT/Asset/WT-Model.png | Depth of Section (in) N/A 3.02 | Flange Width (in) N/A 4 | Flange Thickness (in) N/A 0.280 | Web Thickness (in) N/A 0.230 | Weight Per Linear Foot (lb) N/A 6.00 | Material N/A Carbon Steel | Finish N/A Bare | Grade N/A A992 |
Drawing
|
Add |
| 3 X 7.5# WT 3 X 7.5# WT/Asset/WT-Model.png | Depth of Section (in) N/A 3 | Flange Width (in) N/A 5.990 | Flange Thickness (in) N/A 0.260 | Web Thickness (in) N/A 0.230 | Weight Per Linear Foot (lb) N/A 7.50 | Material N/A Carbon Steel | Finish N/A Bare | Grade N/A A992 |
Drawing
|
Add |
| 3 X 10.0# WT 3 X 10.0# WT/Asset/WT-Model.png | Depth of Section (in) N/A 3.10 | Flange Width (in) N/A 6.020 | Flange Thickness (in) N/A 0.365 | Web Thickness (in) N/A 0.260 | Weight Per Linear Foot (lb) N/A 10.00 | Material N/A Carbon Steel | Finish N/A Bare | Grade N/A A992 |
Drawing
|
Add |
| 3 X 12.5# WT 3 X 12.5# WT/Asset/WT-Model.png | Depth of Section (in) N/A 3.19 | Flange Width (in) N/A 6.080 | Flange Thickness (in) N/A 0.455 | Web Thickness (in) N/A 0.320 | Weight Per Linear Foot (lb) N/A 12.50 | Material N/A Carbon Steel | Finish N/A Bare | Grade N/A A992 |
Drawing
|
Add |
| 4 X 5.0# WT 4 X 5.0# WT/Asset/WT-Model.png | Depth of Section (in) N/A 3.95 | Flange Width (in) N/A 3.940 | Flange Thickness (in) N/A 0.205 | Web Thickness (in) N/A 0.170 | Weight Per Linear Foot (lb) N/A 5.00 | Material N/A Carbon Steel | Finish N/A Bare | Grade N/A A992 |
Drawing
|
Add |
| 4 X 6.5# WT 4 X 6.5# WT/Asset/WT-Model.png | Depth of Section (in) N/A 4 | Flange Width (in) N/A 4 | Flange Thickness (in) N/A 0.255 | Web Thickness (in) N/A 0.230 | Weight Per Linear Foot (lb) N/A 6.5 | Material N/A Carbon Steel | Finish N/A Bare | Grade N/A A992 |
Drawing
|
Add |
| 4 X 7.5# WT 4 X 7.5# WT/Asset/WT-Model.png | Depth of Section (in) N/A 4.05 | Flange Width (in) N/A 4.010 | Flange Thickness (in) N/A 0.315 | Web Thickness (in) N/A 0.245 | Weight Per Linear Foot (lb) N/A 7.50 | Material N/A Carbon Steel | Finish N/A Bare | Grade N/A A992 |
Drawing
|
Add |
| 4 X 9.0# WT 4 X 9.0# WT/Asset/WT-Model.png | Depth of Section (in) N/A 4.07 | Flange Width (in) N/A 5.250 | Flange Thickness (in) N/A 0.330 | Web Thickness (in) N/A 0.230 | Weight Per Linear Foot (lb) N/A 9.00 | Material N/A Carbon Steel | Finish N/A Bare | Grade N/A A992 |
Drawing
|
Add |
| 4 X 10.5# WT 4 X 10.5# WT/Asset/WT-Model.png | Depth of Section (in) N/A 4.14 | Flange Width (in) N/A 5.270 | Flange Thickness (in) N/A 0.400 | Web Thickness (in) N/A 0.250 | Weight Per Linear Foot (lb) N/A 10.50 | Material N/A Carbon Steel | Finish N/A Bare | Grade N/A A992 |
Drawing
|
Add |
| 4 X 12.0# WT 4 X 12.0# WT/Asset/WT-Model.png | Depth of Section (in) N/A 3.97 | Flange Width (in) N/A 6.500 | Flange Thickness (in) N/A 0.400 | Web Thickness (in) N/A 0.245 | Weight Per Linear Foot (lb) N/A 12 | Material N/A Carbon Steel | Finish N/A Bare | Grade N/A A992 |
Drawing
|
Add |
| 4 X 14.0# WT 4 X 14.0# WT/Asset/WT-Model.png | Depth of Section (in) N/A 4.03 | Flange Width (in) N/A 6.540 | Flange Thickness (in) N/A 0.465 | Web Thickness (in) N/A 0.285 | Weight Per Linear Foot (lb) N/A 14 | Material N/A Carbon Steel | Finish N/A Bare | Grade N/A A992 |
Drawing
|
Add |
| 4 X 15.5# WT 4 X 15.5# WT/Asset/WT-Model.png | Depth of Section (in) N/A 4 | Flange Width (in) N/A 8.000 | Flange Thickness (in) N/A 0.435 | Web Thickness (in) N/A 0.285 | Weight Per Linear Foot (lb) N/A 15.50 | Material N/A Carbon Steel | Finish N/A Bare | Grade N/A A992 |
Drawing
|
Add |
| 4 X 20.0# WT 4 X 20.0# WT/Asset/WT-Model.png | Depth of Section (in) N/A 4.13 | Flange Width (in) N/A 8.070 | Flange Thickness (in) N/A 0.560 | Web Thickness (in) N/A 0.360 | Weight Per Linear Foot (lb) N/A 20.00 | Material N/A Carbon Steel | Finish N/A Bare | Grade N/A A992 |
Drawing
|
Add |
| 4 X 29.0# WT 4 X 29.0# WT/Asset/WT-Model.png | Depth of Section (in) N/A 4.38 | Flange Width (in) N/A 8.220 | Flange Thickness (in) N/A 0.810 | Web Thickness (in) N/A 0.510 | Weight Per Linear Foot (lb) N/A 29.00 | Material N/A Carbon Steel | Finish N/A Bare | Grade N/A A992 |
Drawing
|
Add |
| 5 X 6.0# WT 5 X 6.0# WT/Asset/WT-Model.png | Depth of Section (in) N/A 4.93 | Flange Width (in) N/A 3.960 | Flange Thickness (in) N/A 0.210 | Web Thickness (in) N/A 0.190 | Weight Per Linear Foot (lb) N/A 6.00 | Material N/A Carbon Steel | Finish N/A Bare | Grade N/A A992 |
Drawing
|
Add |
| 5 X 8.5# WT 5 X 8.5# WT/Asset/WT-Model.png | Depth of Section (in) N/A 5.05 | Flange Width (in) N/A 4.010 | Flange Thickness (in) N/A 0.330 | Web Thickness (in) N/A 0.240 | Weight Per Linear Foot (lb) N/A 8.5 | Material N/A Carbon Steel | Finish N/A Bare | Grade N/A A992 |
Drawing
|
Add |
| 5 X 9.5# WT 5 X 9.5# WT/Asset/WT-Model.png | Depth of Section (in) N/A 5.12 | Flange Width (in) N/A 4.02 | Flange Thickness (in) N/A 0.395 | Web Thickness (in) N/A 0.250 | Weight Per Linear Foot (lb) N/A 9.50 | Material N/A Carbon Steel | Finish N/A Bare | Grade N/A A992 |
Drawing
|
Add |
| 5 X 11.0# WT 5 X 11.0# WT/Asset/WT-Model.png | Depth of Section (in) N/A 5.09 | Flange Width (in) N/A 5.750 | Flange Thickness (in) N/A 0.360 | Web Thickness (in) N/A 0.240 | Weight Per Linear Foot (lb) N/A 11.00 | Material N/A Carbon Steel | Finish N/A Bare | Grade N/A A992 |
Drawing
|
Add |
| 5 X 13.0# WT 5 X 13.0# WT/Asset/WT-Model.png | Depth of Section (in) N/A 5.17 | Flange Width (in) N/A 5.770 | Flange Thickness (in) N/A 0.440 | Web Thickness (in) N/A 0.260 | Weight Per Linear Foot (lb) N/A 13.00 | Material N/A Carbon Steel | Finish N/A Bare | Grade N/A A992 |
Drawing
|
Add |
| 5 X 15.0# WT 5 X 15.0# WT/Asset/WT-Model.png | Depth of Section (in) N/A 5.24 | Flange Width (in) N/A 5.810 | Flange Thickness (in) N/A 0.510 | Web Thickness (in) N/A 0.300 | Weight Per Linear Foot (lb) N/A 15 | Material N/A Carbon Steel | Finish N/A Bare | Grade N/A A992 |
Drawing
|
Add |
| 5 X 16.5# WT 5 X 16.5# WT/Asset/WT-Model.png | Depth of Section (in) N/A 4.87 | Flange Width (in) N/A 7.960 | Flange Thickness (in) N/A 0.435 | Web Thickness (in) N/A 0.290 | Weight Per Linear Foot (lb) N/A 16.50 | Material N/A Carbon Steel | Finish N/A Bare | Grade N/A A992 |
Drawing
|
Add |
| 5 X 27.0# WT 5 X 27.0# WT/Asset/WT-Model.png | Depth of Section (in) N/A 5.05 | Flange Width (in) N/A 10.000 | Flange Thickness (in) N/A 0.615 | Web Thickness (in) N/A 0.370 | Weight Per Linear Foot (lb) N/A 27.00 | Material N/A Carbon Steel | Finish N/A Bare | Grade N/A A992 |
Drawing
|
Add |
| 5 X 50.0# WT 5 X 50.0# WT/Asset/WT-Model.png | Depth of Section (in) N/A 5.55 | Flange Width (in) N/A 10.300 | Flange Thickness (in) N/A 1.120 | Web Thickness (in) N/A 0.680 | Weight Per Linear Foot (lb) N/A 50.00 | Material N/A Carbon Steel | Finish N/A Bare | Grade N/A A992 |
Drawing
|
Add |
| 6 X 7.0# WT 6 X 7.0# WT/Asset/WT-Model.png | Depth of Section (in) N/A 5.96 | Flange Width (in) N/A 3.970 | Flange Thickness (in) N/A 0.225 | Web Thickness (in) N/A 0.200 | Weight Per Linear Foot (lb) N/A 7 | Material N/A Carbon Steel | Finish N/A Bare | Grade N/A A992 |
Drawing
|
Add |
| 6 X 8.0# WT 6 X 8.0# WT/Asset/WT-Model.png | Depth of Section (in) N/A 6 | Flange Width (in) N/A 3.990 | Flange Thickness (in) N/A 0.265 | Web Thickness (in) N/A 0.220 | Weight Per Linear Foot (lb) N/A 8 | Material N/A Carbon Steel | Finish N/A Bare | Grade N/A A992 |
Drawing
|
Add |
| 6 X 9.5# WT 6 X 9.5# WT/Asset/WT-Model.png | Depth of Section (in) N/A 6.08 | Flange Width (in) N/A 4.010 | Flange Thickness (in) N/A 0.350 | Web Thickness (in) N/A 0.235 | Weight Per Linear Foot (lb) N/A 9.50 | Material N/A Carbon Steel | Finish N/A Bare | Grade N/A A992 |
Drawing
|
Add |
| 6 X 11.0# WT 6 X 11.0# WT/Asset/WT-Model.png | Depth of Section (in) N/A 6.16 | Flange Width (in) N/A 4.030 | Flange Thickness (in) N/A 0.425 | Web Thickness (in) N/A 0.260 | Weight Per Linear Foot (lb) N/A 11.00 | Material N/A Carbon Steel | Finish N/A Bare | Grade N/A A992 |
Drawing
|
Add |
| 6 X 13.0# WT 6 X 13.0# WT/Asset/WT-Model.png | Depth of Section (in) N/A 6.11 | Flange Width (in) N/A 6.490 | Flange Thickness (in) N/A 0.380 | Web Thickness (in) N/A 0.230 | Weight Per Linear Foot (lb) N/A 13.00 | Material N/A Carbon Steel | Finish N/A Bare | Grade N/A A992 |
Drawing
|
Add |
| 6 X 15# WT 6 X 15# WT/Asset/WT-Model.png | Depth of Section (in) N/A 6.17 | Flange Width (in) N/A 6.520 | Flange Thickness (in) N/A 0.440 | Web Thickness (in) N/A 0.260 | Weight Per Linear Foot (lb) N/A 15 | Material N/A Carbon Steel | Finish N/A Bare | Grade N/A A992 |
Drawing
|
Add |
| 6 X 17.5# WT 6 X 17.5# WT/Asset/WT-Model.png | Depth of Section (in) N/A 6.25 | Flange Width (in) N/A 6.560 | Flange Thickness (in) N/A 0.520 | Web Thickness (in) N/A 0.300 | Weight Per Linear Foot (lb) N/A 17.50 | Material N/A Carbon Steel | Finish N/A Bare | Grade N/A A992 |
Drawing
|
Add |
| 6 X 20.0# WT 6 X 20.0# WT/Asset/WT-Model.png | Depth of Section (in) N/A 5.97 | Flange Width (in) N/A 8.010 | Flange Thickness (in) N/A 0.515 | Web Thickness (in) N/A 0.295 | Weight Per Linear Foot (lb) N/A 20.00 | Material N/A Carbon Steel | Finish N/A Bare | Grade N/A A992 |
Drawing
|
Add |
| 6 X 25.0# WT 6 X 25.0# WT/Asset/WT-Model.png | Depth of Section (in) N/A 6.10 | Flange Width (in) N/A 8.080 | Flange Thickness (in) N/A 0.640 | Web Thickness (in) N/A 0.370 | Weight Per Linear Foot (lb) N/A 25.00 | Material N/A Carbon Steel | Finish N/A Bare | Grade N/A A992 |
Drawing
|
Add |
| 6 X 29.0# WT 6 X 29.0# WT/Asset/WT-Model.png | Depth of Section (in) N/A 6.10 | Flange Width (in) N/A 10.000 | Flange Thickness (in) N/A 0.640 | Web Thickness (in) N/A 0.360 | Weight Per Linear Foot (lb) N/A 29.00 | Material N/A Carbon Steel | Finish N/A Bare | Grade N/A A992 |
Drawing
|
Add |
| 6 X 36.0# WT 6 X 36.0# WT/Asset/WT-Model.png | Depth of Section (in) N/A 6.13 | Flange Width (in) N/A 12.000 | Flange Thickness (in) N/A 0.670 | Web Thickness (in) N/A 0.430 | Weight Per Linear Foot (lb) N/A 36.00 | Material N/A Carbon Steel | Finish N/A Bare | Grade N/A A992 |
Drawing
|
Add |
| 6 X 43.5# WT 6 X 43.5# WT/Asset/WT-Model.png | Depth of Section (in) N/A 6.27 | Flange Width (in) N/A 12.100 | Flange Thickness (in) N/A 0.810 | Web Thickness (in) N/A 0.515 | Weight Per Linear Foot (lb) N/A 43.50 | Material N/A Carbon Steel | Finish N/A Bare | Grade N/A A992 |
Drawing
|
Add |
| 6 X 48.0# WT 6 X 48.0# WT/Asset/WT-Model.png | Depth of Section (in) N/A 6.36 | Flange Width (in) N/A 12.200 | Flange Thickness (in) N/A 0.900 | Web Thickness (in) N/A 0.550 | Weight Per Linear Foot (lb) N/A 48.00 | Material N/A Carbon Steel | Finish N/A Bare | Grade N/A A992 |
Drawing
|
Add |
| 7 X 11.0# WT 7 X 11.0# WT/Asset/WT-Model.png | Depth of Section (in) N/A 6.87 | Flange Width (in) N/A 5.000 | Flange Thickness (in) N/A 0.335 | Web Thickness (in) N/A 0.230 | Weight Per Linear Foot (lb) N/A 11.00 | Material N/A Carbon Steel | Finish N/A Bare | Grade N/A A992 |
Drawing
|
Add |
| 7 X 17.0# WT 7 X 17.0# WT/Asset/WT-Model.png | Depth of Section (in) N/A 6.99 | Flange Width (in) N/A 6.750 | Flange Thickness (in) N/A 0.455 | Web Thickness (in) N/A 0.285 | Weight Per Linear Foot (lb) N/A 17 | Material N/A Carbon Steel | Finish N/A Bare | Grade N/A A992 |
Drawing
|
Add |
| 7 X 19.0# WT 7 X 19.0# WT/Asset/WT-Model.png | Depth of Section (in) N/A 7.05 | Flange Width (in) N/A 6.770 | Flange Thickness (in) N/A 0.515 | Web Thickness (in) N/A 0.310 | Weight Per Linear Foot (lb) N/A 19.00 | Material N/A Carbon Steel | Finish N/A Bare | Grade N/A A992 |
Drawing
|
Add |
| 7 X 24.0# WT 7 X 24.0# WT/Asset/WT-Model.png | Depth of Section (in) N/A 6.90 | Flange Width (in) N/A 8.030 | Flange Thickness (in) N/A 0.595 | Web Thickness (in) N/A 0.340 | Weight Per Linear Foot (lb) N/A 24 | Material N/A Carbon Steel | Finish N/A Bare | Grade N/A A992 |
Drawing
|
Add |
| 7 X 26.5# WT 7 X 26.5# WT/Asset/WT-Model.png | Depth of Section (in) N/A 6.96 | Flange Width (in) N/A 8.060 | Flange Thickness (in) N/A 0.660 | Web Thickness (in) N/A 0.370 | Weight Per Linear Foot (lb) N/A 26.50 | Material N/A Carbon Steel | Finish N/A Bare | Grade N/A A992 |
Drawing
|
Add |
| 7 X 41.0# WT 7 X 41.0# WT/Asset/WT-Model.png | Depth of Section (in) N/A 7.16 | Flange Width (in) N/A 10.100 | Flange Thickness (in) N/A 0.855 | Web Thickness (in) N/A 0.510 | Weight Per Linear Foot (lb) N/A 41.00 | Material N/A Carbon Steel | Finish N/A Bare | Grade N/A A992 |
Drawing
|
Add |
| 8 X 15.5# WT 8 X 15.5# WT/Asset/WT-Model.png | Depth of Section (in) N/A 7.94 | Flange Width (in) N/A 5.530 | Flange Thickness (in) N/A 0.440 | Web Thickness (in) N/A 0.275 | Weight Per Linear Foot (lb) N/A 15.50 | Material N/A Carbon Steel | Finish N/A Bare | Grade N/A A992 |
Drawing
|
Add |
| 8 X 18.0# WT 8 X 18.0# WT/Asset/WT-Model.png | Depth of Section (in) N/A 7.93 | Flange Width (in) N/A 6.990 | Flange Thickness (in) N/A 0.430 | Web Thickness (in) N/A 0.295 | Weight Per Linear Foot (lb) N/A 18.00 | Material N/A Carbon Steel | Finish N/A Bare | Grade N/A A992 |
Drawing
|
Add |
| 8 X 20.0# WT 8 X 20.0# WT/Asset/WT-Model.png | Depth of Section (in) N/A 8.01 | Flange Width (in) N/A 7.000 | Flange Thickness (in) N/A 0.505 | Web Thickness (in) N/A 0.305 | Weight Per Linear Foot (lb) N/A 20.00 | Material N/A Carbon Steel | Finish N/A Bare | Grade N/A A992 |
Drawing
|
Add |
| 8 X 22.5# WT 8 X 22.5# WT/Asset/WT-Model.png | Depth of Section (in) N/A 8.07 | Flange Width (in) N/A 7.040 | Flange Thickness (in) N/A 0.565 | Web Thickness (in) N/A 0.345 | Weight Per Linear Foot (lb) N/A 22.50 | Material N/A Carbon Steel | Finish N/A Bare | Grade N/A A992 |
Drawing
|
Add |
| 8 X 25.0# WT 8 X 25.0# WT/Asset/WT-Model.png | Depth of Section (in) N/A 8.13 | Flange Width (in) N/A 7.070 | Flange Thickness (in) N/A 0.630 | Web Thickness (in) N/A 0.380 | Weight Per Linear Foot (lb) N/A 25.00 | Material N/A Carbon Steel | Finish N/A Bare | Grade N/A A992 |
Drawing
|
Add |
| 8 X 28.5# WT 8 X 28.5# WT/Asset/WT-Model.png | Depth of Section (in) N/A 8.22 | Flange Width (in) N/A 7.120 | Flange Thickness (in) N/A 0.715 | Web Thickness (in) N/A 0.430 | Weight Per Linear Foot (lb) N/A 28.50 | Material N/A Carbon Steel | Finish N/A Bare | Grade N/A A992 |
Drawing
|
Add |
| 8 X 44.5# WT 8 X 44.5# WT/Asset/WT-Model.png | Depth of Section (in) N/A 8.38 | Flange Width (in) N/A 10.400 | Flange Thickness (in) N/A 0.875 | Web Thickness (in) N/A 0.525 | Weight Per Linear Foot (lb) N/A 44.50 | Material N/A Carbon Steel | Finish N/A Bare | Grade N/A A992 |
Drawing
|
Add |
| 8 X 50.0# WT 8 X 50.0# WT/Asset/WT-Model.png | Depth of Section (in) N/A 8.48 | Flange Width (in) N/A 10.400 | Flange Thickness (in) N/A 0.985 | Web Thickness (in) N/A 0.585 | Weight Per Linear Foot (lb) N/A 50.00 | Material N/A Carbon Steel | Finish N/A Bare | Grade N/A A992 |
Drawing
|
Add |
| 9 X 25.0# WT 9 X 25.0# WT/Asset/WT-Model.png | Depth of Section (in) N/A 8.99 | Flange Width (in) N/A 7.500 | Flange Thickness (in) N/A 0.570 | Web Thickness (in) N/A 0.355 | Weight Per Linear Foot (lb) N/A 25.00 | Material N/A Carbon Steel | Finish N/A Bare | Grade N/A A992 |
Drawing
|
Add |
| 9 X 27.5# WT 9 X 27.5# WT/Asset/WT-Model.png | Depth of Section (in) N/A 9.06 | Flange Width (in) N/A 7.530 | Flange Thickness (in) N/A 0.630 | Web Thickness (in) N/A 0.390 | Weight Per Linear Foot (lb) N/A 27.50 | Material N/A Carbon Steel | Finish N/A Bare | Grade N/A A992 |
Drawing
|
Add |
| 9 X 38.0# WT 9 X 38.0# WT/Asset/WT-Model.png | Depth of Section (in) N/A 9.11 | Flange Width (in) N/A 11.000 | Flange Thickness (in) N/A 0.680 | Web Thickness (in) N/A 0.425 | Weight Per Linear Foot (lb) N/A 38.00 | Material N/A Carbon Steel | Finish N/A Bare | Grade N/A A992 |
Drawing
|
Add |
| 10 1/2 X 46.5# WT 10 1/2 X 46.5# WT/Asset/WT-Model.png | Depth of Section (in) N/A 10.80 | Flange Width (in) N/A 8.420 | Flange Thickness (in) N/A 0.930 | Web Thickness (in) N/A 0.580 | Weight Per Linear Foot (lb) N/A 46.50 | Material N/A Carbon Steel | Finish N/A Bare | Grade N/A A992 |
Drawing
|
Add |
| 12 X 34.0# WT 12 X 34.0# WT/Asset/WT-Model.png | Depth of Section (in) N/A 11.90 | Flange Width (in) N/A 8.970 | Flange Thickness (in) N/A 0.585 | Web Thickness (in) N/A 0.415 | Weight Per Linear Foot (lb) N/A 34 | Material N/A Carbon Steel | Finish N/A Bare | Grade N/A A992 |
Drawing
|
Add |
