Steel I-Beams
Beams

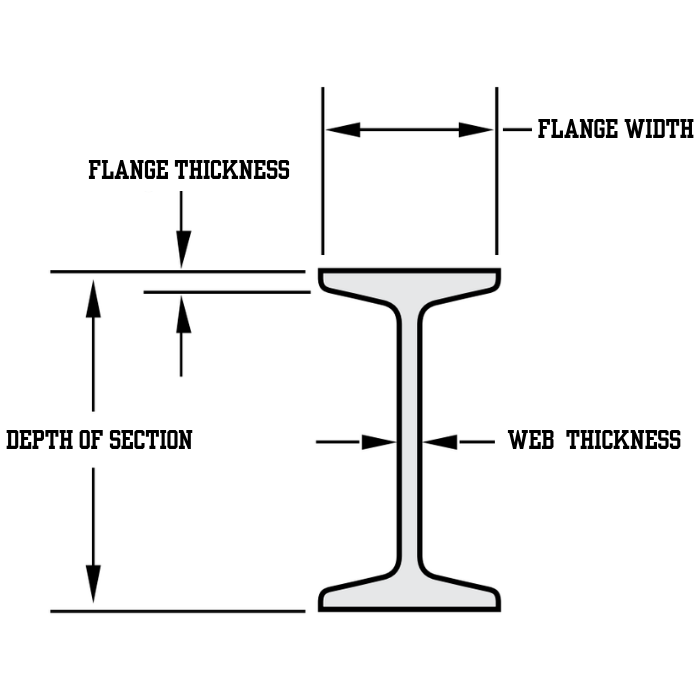

Steel I-beams with tapered flanges, ideal for structural support in construction and engineering. Available in multiple sizes, standard stock lengths, cut-to-length dimensions, and custom part orders.
Item Name |
Depth of Section (in) |
Flange Width (in) |
Flange Thickness (in) |
Web Thickness (in) |
Weight Per Linear Foot (lb) |
Material |
Finish |
Grade |
Drawing |
RFQ |
|---|---|---|---|---|---|---|---|---|---|---|
| 3 X 5.7# HR I BEAM 3 X 5.7# HR I BEAM/Asset/I-Beam-Model.png | Depth of Section (in) N/A 3 | Flange Width (in) N/A 2.330 | Flange Thickness (in) N/A 0.260 | Web Thickness (in) N/A 0.170 | Weight Per Linear Foot (lb) N/A 5.70 | Material N/A Carbon Steel | Finish N/A Bare | Grade N/A A992 |
Drawing
 |
Add |
| 3 X 7.5# HR I BEAM 3 X 7.5# HR I BEAM/Asset/I-Beam-Model.png | Depth of Section (in) N/A 3 | Flange Width (in) N/A 2.509 | Flange Thickness (in) N/A 0.260 | Web Thickness (in) N/A 0.349 | Weight Per Linear Foot (lb) N/A 7.50 | Material N/A Carbon Steel | Finish N/A Bare | Grade N/A A992 |
Drawing
|
Add |
| 4 X 7.7# HR I BEAM 4 X 7.7# HR I BEAM/Asset/I-Beam-Model.png | Depth of Section (in) N/A 4 | Flange Width (in) N/A 2.660 | Flange Thickness (in) N/A 0.293 | Web Thickness (in) N/A 0.193 | Weight Per Linear Foot (lb) N/A 7.70 | Material N/A Carbon Steel | Finish N/A Bare | Grade N/A A992 |
Drawing
|
Add |
| 4 X 9.5# HR I BEAM 4 X 9.5# HR I BEAM/Asset/I-Beam-Model.png | Depth of Section (in) N/A 4 | Flange Width (in) N/A 2.796 | Flange Thickness (in) N/A 0.293 | Web Thickness (in) N/A 0.326 | Weight Per Linear Foot (lb) N/A 9.50 | Material N/A Carbon Steel | Finish N/A Bare | Grade N/A A992 |
Drawing
|
Add |
| 5 X 10.0# HR I BEAM 5 X 10.0# HR I BEAM/Asset/I-Beam-Model.png | Depth of Section (in) N/A 5 | Flange Width (in) N/A 3 | Flange Thickness (in) N/A 0.326 | Web Thickness (in) N/A 0.214 | Weight Per Linear Foot (lb) N/A 10.00 | Material N/A Carbon Steel | Finish N/A Bare | Grade N/A A992 |
Drawing
|
Add |
| 6 X 12.5# HR I BEAM 6 X 12.5# HR I BEAM/Asset/I-Beam-Model.png | Depth of Section (in) N/A 6 | Flange Width (in) N/A 3.332 | Flange Thickness (in) N/A 0.359 | Web Thickness (in) N/A 0.232 | Weight Per Linear Foot (lb) N/A 12.50 | Material N/A Carbon Steel | Finish N/A Bare | Grade N/A A992 |
Drawing
|
Add |
| 6 X 17.25# HR I BEAM 6 X 17.25# HR I BEAM/Asset/I-Beam-Model.png | Depth of Section (in) N/A 6 | Flange Width (in) N/A 3.565 | Flange Thickness (in) N/A 0.359 | Web Thickness (in) N/A 0.465 | Weight Per Linear Foot (lb) N/A 17.25 | Material N/A Carbon Steel | Finish N/A Bare | Grade N/A A992 |
Drawing
|
Add |
| 8 X 18.4# HR I BEAM 8 X 18.4# HR I BEAM/Asset/I-Beam-Model.png | Depth of Section (in) N/A 8 | Flange Width (in) N/A 4.001 | Flange Thickness (in) N/A 0.425 | Web Thickness (in) N/A 0.271 | Weight Per Linear Foot (lb) N/A 18.40 | Material N/A Carbon Steel | Finish N/A Bare | Grade N/A A992 |
Drawing
|
Add |
| 8 X 23.0# HR I BEAM 8 X 23.0# HR I BEAM/Asset/I-Beam-Model.png | Depth of Section (in) N/A 8 | Flange Width (in) N/A 4.171 | Flange Thickness (in) N/A 0.425 | Web Thickness (in) N/A 0.441 | Weight Per Linear Foot (lb) N/A 23.00 | Material N/A Carbon Steel | Finish N/A Bare | Grade N/A A992 |
Drawing
|
Add |
| 10 X 25.4# HR I BEAM 10 X 25.4# HR I BEAM/Asset/I-Beam-Model.png | Depth of Section (in) N/A 10 | Flange Width (in) N/A 4.661 | Flange Thickness (in) N/A 0.491 | Web Thickness (in) N/A 0.311 | Weight Per Linear Foot (lb) N/A 25.40 | Material N/A Carbon Steel | Finish N/A Bare | Grade N/A A992 |
Drawing
|
Add |
| 10 X 35.0# HR I BEAM 10 X 35.0# HR I BEAM/Asset/I-Beam-Model.png | Depth of Section (in) N/A 10 | Flange Width (in) N/A 4.944 | Flange Thickness (in) N/A 0.491 | Web Thickness (in) N/A 0.594 | Weight Per Linear Foot (lb) N/A 35.00 | Material N/A Carbon Steel | Finish N/A Bare | Grade N/A A992 |
Drawing
|
Add |
| 12 X 31.8# HR I BEAM 12 X 31.8# HR I BEAM/Asset/I-Beam-Model.png | Depth of Section (in) N/A 12 | Flange Width (in) N/A 5.000 | Flange Thickness (in) N/A 0.544 | Web Thickness (in) N/A 0.350 | Weight Per Linear Foot (lb) N/A 31.80 | Material N/A Carbon Steel | Finish N/A Bare | Grade N/A A992 |
Drawing
|
Add |
| 12 X 35.0# HR I BEAM 12 X 35.0# HR I BEAM/Asset/I-Beam-Model.png | Depth of Section (in) N/A 12 | Flange Width (in) N/A 5.078 | Flange Thickness (in) N/A 0.544 | Web Thickness (in) N/A 0.428 | Weight Per Linear Foot (lb) N/A 35.00 | Material N/A Carbon Steel | Finish N/A Bare | Grade N/A A992 |
Drawing
|
Add |
| 12 X 40.8# HR I BEAM 12 X 40.8# HR I BEAM/Asset/I-Beam-Model.png | Depth of Section (in) N/A 12 | Flange Width (in) N/A 5.252 | Flange Thickness (in) N/A 0.659 | Web Thickness (in) N/A 0.462 | Weight Per Linear Foot (lb) N/A 40.8 | Material N/A Carbon Steel | Finish N/A Bare | Grade N/A A992 |
Drawing
|
Add |
| 12 X 50.0# HR I BEAM 12 X 50.0# HR I BEAM/Asset/I-Beam-Model.png | Depth of Section (in) N/A 12 | Flange Width (in) N/A 5.477 | Flange Thickness (in) N/A 0.659 | Web Thickness (in) N/A 0.687 | Weight Per Linear Foot (lb) N/A 50.00 | Material N/A Carbon Steel | Finish N/A Bare | Grade N/A A992 |
Drawing
|
Add |
| 15 X 42.9# HR I BEAM 15 X 42.9# HR I BEAM/Asset/I-Beam-Model.png | Depth of Section (in) N/A 15 | Flange Width (in) N/A 5.501 | Flange Thickness (in) N/A 0.622 | Web Thickness (in) N/A 0.411 | Weight Per Linear Foot (lb) N/A 42.90 | Material N/A Carbon Steel | Finish N/A Bare | Grade N/A A992 |
Drawing
|
Add |
| 15 X 50.0# HR I BEAM 15 X 50.0# HR I BEAM/Asset/I-Beam-Model.png | Depth of Section (in) N/A 15 | Flange Width (in) N/A 5.640 | Flange Thickness (in) N/A 0.622 | Web Thickness (in) N/A 0.550 | Weight Per Linear Foot (lb) N/A 50.00 | Material N/A Carbon Steel | Finish N/A Bare | Grade N/A A992 |
Drawing
|
Add |
| 18 X 70.0# HR I BEAM 18 X 70.0# HR I BEAM/Asset/I-Beam-Model.png | Depth of Section (in) N/A 18 | Flange Width (in) N/A 6.251 | Flange Thickness (in) N/A 0.691 | Web Thickness (in) N/A 0.711 | Weight Per Linear Foot (lb) N/A 70.00 | Material N/A Carbon Steel | Finish N/A Bare | Grade N/A A992 |
Drawing
|
Add |
