Painted Wide Flange Beams
Beams
Durable wide flange beams, primed with a protective coating to prevent rust and improve paint adhesion, designed for structural applications. Available in multiple thicknesses, standard stock lengths, cut-to-length dimensions, and custom part orders.
Item Name |

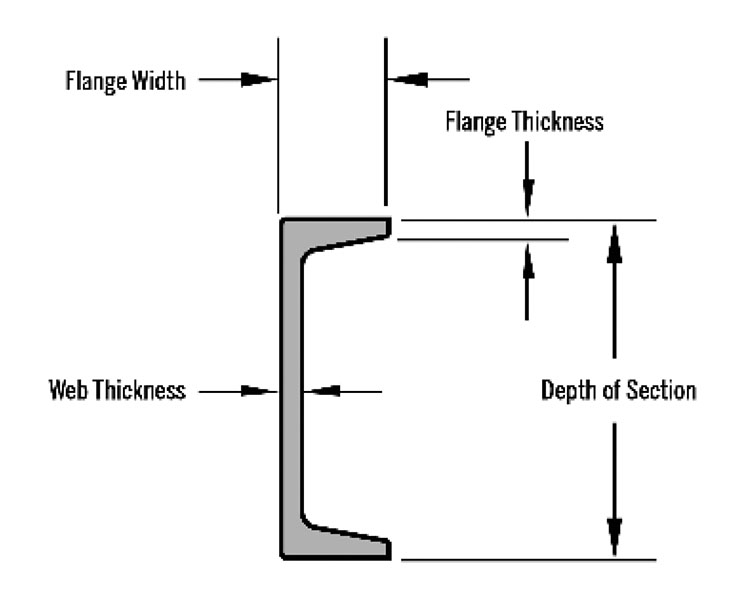

Depth of Section (in) |
Flange Width (in) |
Flange Thickness (in) |
Web Thickness (in) |
Weight Per Linear Foot (lb) |
Material |
Finish |
Grade |
Drawing |
Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|

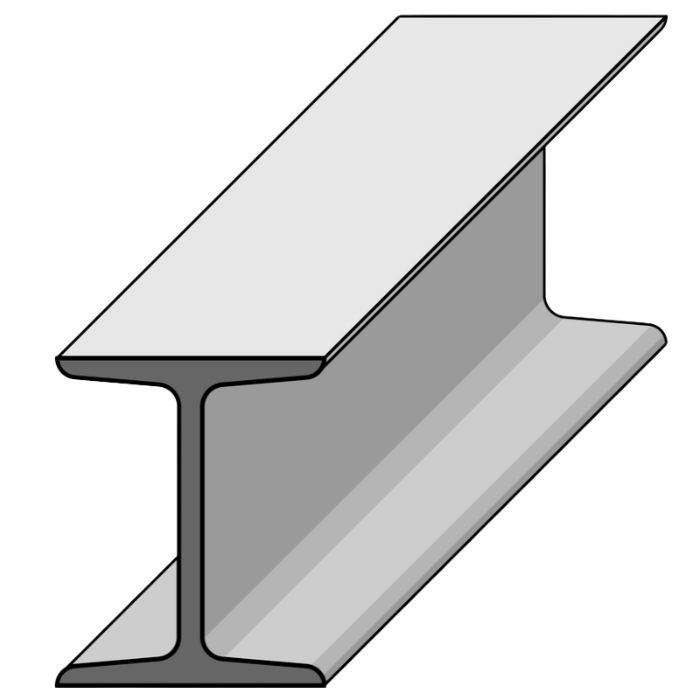

| 6 X 15.0# HR PAINTED WF BEAM 6 X 15.0# HR PAINTED WF BEAM/Asset/WF-Beam-model.png | Depth of Section (in) N/A 5.99 | Flange Width (in) N/A 5.990 | Flange Thickness (in) N/A 0.260 | Web Thickness (in) N/A 0.230 | Weight Per Linear Foot (lb) N/A 15 | Material N/A Carbon Steel | Finish N/A Painted | Grade N/A A992 |
Drawing
 |
Request Quote |
| 6 X 9.0# HR PAINTED WF BEAM 6 X 9.0# HR PAINTED WF BEAM/Asset/WF-Beam-model.png | Depth of Section (in) N/A 5.90 | Flange Width (in) N/A 3.940 | Flange Thickness (in) N/A 0.215 | Web Thickness (in) N/A 0.170 | Weight Per Linear Foot (lb) N/A 9.00 | Material N/A Carbon Steel | Finish N/A Painted | Grade N/A A992 |
Drawing
|
Request Quote |
| 8 X 18.0# HR PAINTED WF BEAM 8 X 18.0# HR PAINTED WF BEAM/Asset/WF-Beam-model.png | Depth of Section (in) N/A 8.14 | Flange Width (in) N/A 5.250 | Flange Thickness (in) N/A 0.330 | Web Thickness (in) N/A 0.230 | Weight Per Linear Foot (lb) N/A 18.00 | Material N/A Carbon Steel | Finish N/A Painted | Grade N/A A992 |
Drawing
|
Request Quote |
| 8 X 21.0# HR PAINTED WF BEAM 8 X 21.0# HR PAINTED WF BEAM/Asset/WF-Beam-model.png | Depth of Section (in) N/A 8.28 | Flange Width (in) N/A 5.270 | Flange Thickness (in) N/A 0.400 | Web Thickness (in) N/A 0.250 | Weight Per Linear Foot (lb) N/A 21.00 | Material N/A Carbon Steel | Finish N/A Painted | Grade N/A A992 |
Drawing
|
Request Quote |
| 8 X 24.0# HR PAINTED WF BEAM 8 X 24.0# HR PAINTED WF BEAM/Asset/WF-Beam-model.png | Depth of Section (in) N/A 7.93 | Flange Width (in) N/A 6.490 | Flange Thickness (in) N/A 0.400 | Web Thickness (in) N/A 0.245 | Weight Per Linear Foot (lb) N/A 24 | Material N/A Carbon Steel | Finish N/A Painted | Grade N/A A992 |
Drawing
|
Request Quote |
| 8 X 28.0# HR PAINTED WF BEAM 8 X 28.0# HR PAINTED WF BEAM/Asset/WF-Beam-model.png | Depth of Section (in) N/A 8.06 | Flange Width (in) N/A 6.535 | Flange Thickness (in) N/A 0.465 | Web Thickness (in) N/A 0.285 | Weight Per Linear Foot (lb) N/A 28.00 | Material N/A Carbon Steel | Finish N/A Painted | Grade N/A A992 |
Drawing
|
Request Quote |
| 10 X 30.0# HR PAINTED WF BEAM 10 X 30.0# HR PAINTED WF BEAM/Asset/WF-Beam-model.png | Depth of Section (in) N/A 10.47 | Flange Width (in) N/A 5.810 | Flange Thickness (in) N/A 0.510 | Web Thickness (in) N/A 0.300 | Weight Per Linear Foot (lb) N/A 30.00 | Material N/A Carbon Steel | Finish N/A Painted | Grade N/A A992 |
Drawing
|
Request Quote |
| 12 X 22.0# HR PAINTED WF BEAM 12 X 22.0# HR PAINTED WF BEAM/Asset/WF-Beam-model.png | Depth of Section (in) N/A 12.31 | Flange Width (in) N/A 4.030 | Flange Thickness (in) N/A 0.425 | Web Thickness (in) N/A 0.260 | Weight Per Linear Foot (lb) N/A 22.00 | Material N/A Carbon Steel | Finish N/A Painted | Grade N/A A992 |
Drawing
|
Request Quote |
| 12 X 26.0# HR PAINTED WF BEAM 12 X 26.0# HR PAINTED WF BEAM/Asset/WF-Beam-model.png | Depth of Section (in) N/A 12.22 | Flange Width (in) N/A 6.490 | Flange Thickness (in) N/A 0.380 | Web Thickness (in) N/A 0.230 | Weight Per Linear Foot (lb) N/A 26.00 | Material N/A Carbon Steel | Finish N/A Painted | Grade N/A A992 |
Drawing
|
Request Quote |
| 12 X 30.0# HR PAINTED WF BEAM 12 X 30.0# HR PAINTED WF BEAM/Asset/WF-Beam-model.png | Depth of Section (in) N/A 12.34 | Flange Width (in) N/A 6.520 | Flange Thickness (in) N/A 0.440 | Web Thickness (in) N/A 0.260 | Weight Per Linear Foot (lb) N/A 30.00 | Material N/A Carbon Steel | Finish N/A Painted | Grade N/A A992 |
Drawing
|
Request Quote |
| 12 X 35.0# HR PAINTED WF BEAM 12 X 35.0# HR PAINTED WF BEAM/Asset/WF-Beam-model.png | Depth of Section (in) N/A 12.50 | Flange Width (in) N/A 6.560 | Flange Thickness (in) N/A 0.520 | Web Thickness (in) N/A 0.300 | Weight Per Linear Foot (lb) N/A 35.00 | Material N/A Carbon Steel | Finish N/A Painted | Grade N/A A992 |
Drawing
|
Request Quote |
| 12 X 40.0# HR PAINTED WF BEAM 12 X 40.0# HR PAINTED WF BEAM/Asset/WF-Beam-model.png | Depth of Section (in) N/A 11.94 | Flange Width (in) N/A 8.005 | Flange Thickness (in) N/A 0.515 | Web Thickness (in) N/A 0.295 | Weight Per Linear Foot (lb) N/A 40.00 | Material N/A Carbon Steel | Finish N/A Painted | Grade N/A A992 |
Drawing
|
Request Quote |
| 14 X 22.0# HR PAINTED WF BEAM 14 X 22.0# HR PAINTED WF BEAM/Asset/WF-Beam-model.png | Depth of Section (in) N/A 13.74 | Flange Width (in) N/A 5.000 | Flange Thickness (in) N/A 0.335 | Web Thickness (in) N/A 0.230 | Weight Per Linear Foot (lb) N/A 22.00 | Material N/A Carbon Steel | Finish N/A Painted | Grade N/A A992 |
Drawing
|
Request Quote |
| 14 X 26.0# HR PAINTED WF BEAM 14 X 26.0# HR PAINTED WF BEAM/Asset/WF-Beam-model.png | Depth of Section (in) N/A 13.91 | Flange Width (in) N/A 5.025 | Flange Thickness (in) N/A 0.420 | Web Thickness (in) N/A 0.255 | Weight Per Linear Foot (lb) N/A 26.00 | Material N/A Carbon Steel | Finish N/A Painted | Grade N/A A992 |
Drawing
|
Request Quote |
| 14 X 30.0# HR PAINTED WF BEAM 14 X 30.0# HR PAINTED WF BEAM/Asset/WF-Beam-model.png | Depth of Section (in) N/A 13.84 | Flange Width (in) N/A 6.730 | Flange Thickness (in) N/A 0.385 | Web Thickness (in) N/A 0.270 | Weight Per Linear Foot (lb) N/A 30.00 | Material N/A Carbon Steel | Finish N/A Painted | Grade N/A A992 |
Drawing
|
Request Quote |
| 14 X 34.0# HR PAINTED WF BEAM 14 X 34.0# HR PAINTED WF BEAM/Asset/WF-Beam-model.png | Depth of Section (in) N/A 13.98 | Flange Width (in) N/A 6.785 | Flange Thickness (in) N/A 0.455 | Web Thickness (in) N/A 0.285 | Weight Per Linear Foot (lb) N/A 34 | Material N/A Carbon Steel | Finish N/A Painted | Grade N/A A992 |
Drawing
|
Request Quote |
| 14 X 38.0# HR PAINTED WF BEAM 14 X 38.0# HR PAINTED WF BEAM/Asset/WF-Beam-model.png | Depth of Section (in) N/A 14.10 | Flange Width (in) N/A 6.770 | Flange Thickness (in) N/A 0.515 | Web Thickness (in) N/A 0.310 | Weight Per Linear Foot (lb) N/A 38.00 | Material N/A Carbon Steel | Finish N/A Painted | Grade N/A A992 |
Drawing
|
Request Quote |
| 14 X 43.0# HR PAINTED WF BEAM 14 X 43.0# HR PAINTED WF BEAM/Asset/WF-Beam-model.png | Depth of Section (in) N/A 13.66 | Flange Width (in) N/A 7.995 | Flange Thickness (in) N/A 0.530 | Web Thickness (in) N/A 0.305 | Weight Per Linear Foot (lb) N/A 43.00 | Material N/A Carbon Steel | Finish N/A Painted | Grade N/A A992 |
Drawing
|
Request Quote |
| 14 X 48.0# HR PAINTED WF BEAM 14 X 48.0# HR PAINTED WF BEAM/Asset/WF-Beam-model.png | Depth of Section (in) N/A 13.79 | Flange Width (in) N/A 8.030 | Flange Thickness (in) N/A 0.595 | Web Thickness (in) N/A 0.340 | Weight Per Linear Foot (lb) N/A 48.00 | Material N/A Carbon Steel | Finish N/A Painted | Grade N/A A992 |
Drawing
|
Request Quote |
| 16 X 31.0# HR PAINTED WF BEAM 16 X 31.0# HR PAINTED WF BEAM/Asset/WF-Beam-model.png | Depth of Section (in) N/A 15.88 | Flange Width (in) N/A 5.525 | Flange Thickness (in) N/A 0.440 | Web Thickness (in) N/A 0.275 | Weight Per Linear Foot (lb) N/A 31.00 | Material N/A Carbon Steel | Finish N/A Painted | Grade N/A A992 |
Drawing
|
Request Quote |
| 16 X 36.0# HR PAINTED WF BEAM 16 X 36.0# HR PAINTED WF BEAM/Asset/WF-Beam-model.png | Depth of Section (in) N/A 15.86 | Flange Width (in) N/A 6.985 | Flange Thickness (in) N/A 0.430 | Web Thickness (in) N/A 0.295 | Weight Per Linear Foot (lb) N/A 36.00 | Material N/A Carbon Steel | Finish N/A Painted | Grade N/A A992 |
Drawing
|
Request Quote |
| 16 X 45.0# HR PAINTED WF BEAM 16 X 45.0# HR PAINTED WF BEAM/Asset/WF-Beam-model.png | Depth of Section (in) N/A 16.13 | Flange Width (in) N/A 7.035 | Flange Thickness (in) N/A 0.565 | Web Thickness (in) N/A 0.345 | Weight Per Linear Foot (lb) N/A 45.00 | Material N/A Carbon Steel | Finish N/A Painted | Grade N/A A992 |
Drawing
|
Request Quote |
