Hot Rolled Angles
Angles
Steel angles are 90 degree L-shaped products used for both structural support and ornamental applications.

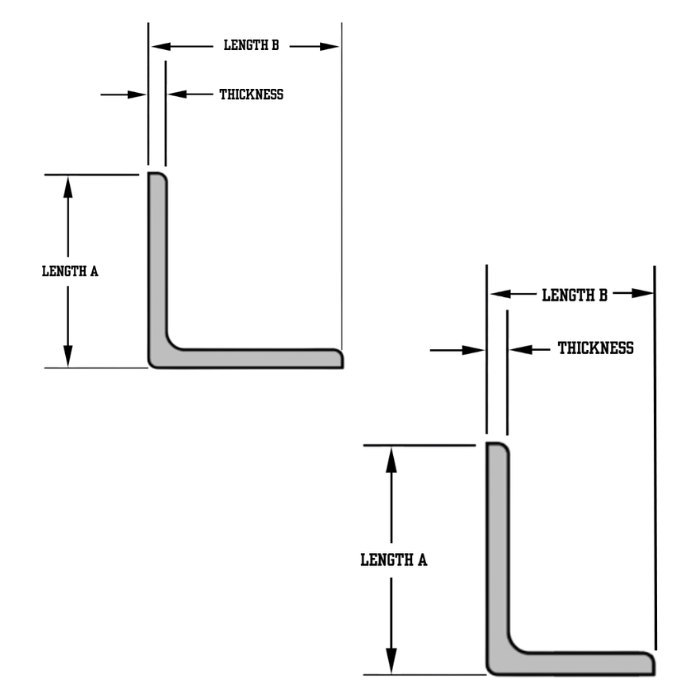

Item Name |
Length A (in) |
Length B (in) |
Thickness (in) |
Weight Per Linear Foot (lb) |
Material |
Grade |
Drawing |
Request Quote |
|---|---|---|---|---|---|---|---|---|

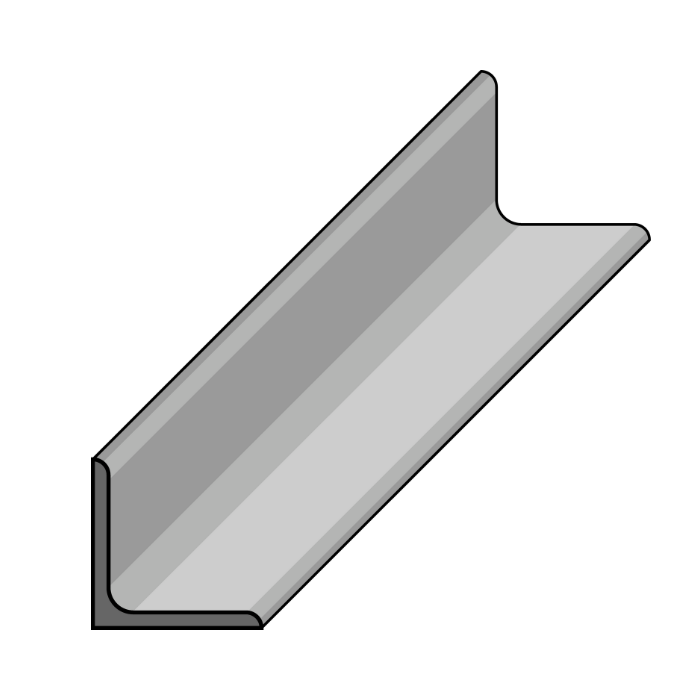

| 1/2 X 1/2 X 1/8 HR ANGLE 1/2 X 1/2 X 1/8 HR ANGLE/Asset/Angles-model.png | Length A (in) N/A 1/2 | Length B (in) N/A 1/2 | Thickness (in) N/A 0.1250 | Weight Per Linear Foot (lb) N/A 0.38 | Material N/A Carbon Steel | Grade N/A A36 Grade 50 |
Drawing
 |
Request Quote |
| 3/4 X 3/4 X 1/8 HR ANGLE 3/4 X 3/4 X 1/8 HR ANGLE/Asset/Angles-model.png | Length A (in) N/A 3/4 | Length B (in) N/A 3/4 | Thickness (in) N/A 0.1250 | Weight Per Linear Foot (lb) N/A 0.59 | Material N/A Carbon Steel | Grade N/A A36 Grade 50 |
Drawing
|
Request Quote |
| 1 X 1 X 1/8 HR ANGLE 1 X 1 X 1/8 HR ANGLE/Asset/Angles-model.png | Length A (in) N/A 1 | Length B (in) N/A 1 | Thickness (in) N/A 0.1250 | Weight Per Linear Foot (lb) N/A 0.80 | Material N/A Carbon Steel | Grade N/A A36 Grade 50 |
Drawing
|
Request Quote |
| 1 X 1 X 3/16 HR ANGLE 1 X 1 X 3/16 HR ANGLE/Asset/Angles-model.png | Length A (in) N/A 1 | Length B (in) N/A 1 | Thickness (in) N/A 3/16 | Weight Per Linear Foot (lb) N/A 1.16 | Material N/A Carbon Steel | Grade N/A A36 Grade 50 |
Drawing
|
Request Quote |
| 1 X 1 X 1/4 HR ANGLE 1 X 1 X 1/4 HR ANGLE/Asset/Angles-model.png | Length A (in) N/A 1 | Length B (in) N/A 1 | Thickness (in) N/A 1/4 | Weight Per Linear Foot (lb) N/A 1.49 | Material N/A Carbon Steel | Grade N/A A36 Grade 50 |
Drawing
|
Request Quote |
| 1 1/4 X 1 1/4 X 1/4 HR ANGLE 1 1/4 X 1 1/4 X 1/4 HR ANGLE/Asset/Angles-model.png | Length A (in) N/A 1-1/4 | Length B (in) N/A 1 1/4 | Thickness (in) N/A 1/4 | Weight Per Linear Foot (lb) N/A 1.92 | Material N/A Carbon Steel | Grade N/A A36 Grade 50 |
Drawing
|
Request Quote |
| 1 1/4 X 1 1/4 X 1/8 HR ANGLE 1 1/4 X 1 1/4 X 1/8 HR ANGLE/Asset/Angles-model.png | Length A (in) N/A 1-1/4 | Length B (in) N/A 1 1/4 | Thickness (in) N/A 0.1250 | Weight Per Linear Foot (lb) N/A 1.01 | Material N/A Carbon Steel | Grade N/A A36 Grade 50 |
Drawing
|
Request Quote |
| 1 1/4 X 1 1/4 X 3/16 HR ANGLE 1 1/4 X 1 1/4 X 3/16 HR ANGLE/Asset/Angles-model.png | Length A (in) N/A 1-1/4 | Length B (in) N/A 1 1/4 | Thickness (in) N/A 3/16 | Weight Per Linear Foot (lb) N/A 1.48 | Material N/A Carbon Steel | Grade N/A A36 Grade 50 |
Drawing
|
Request Quote |
| 1 1/2 X 1 1/2 X 1/8 HR ANGLE 1 1/2 X 1 1/2 X 1/8 HR ANGLE/Asset/Angles-model.png | Length A (in) N/A 1-1/2 | Length B (in) N/A 1.5 | Thickness (in) N/A 0.1250 | Weight Per Linear Foot (lb) N/A 1.23 | Material N/A Carbon Steel | Grade N/A A36 Grade 50 |
Drawing
|
Request Quote |
| 1 1/2 X 1 1/2 X 3/16 HR ANGLE 1 1/2 X 1 1/2 X 3/16 HR ANGLE/Asset/Angles-model.png | Length A (in) N/A 1-1/2 | Length B (in) N/A 1.5 | Thickness (in) N/A 3/16 | Weight Per Linear Foot (lb) N/A 1.80 | Material N/A Carbon Steel | Grade N/A A36 Grade 50 |
Drawing
|
Request Quote |
| 1 1/2 X 1 1/2 X 1/4 HR ANGLE 1 1/2 X 1 1/2 X 1/4 HR ANGLE/Asset/Angles-model.png | Length A (in) N/A 1-1/2 | Length B (in) N/A 1.5 | Thickness (in) N/A 1/4 | Weight Per Linear Foot (lb) N/A 2.34 | Material N/A Carbon Steel | Grade N/A A36 Grade 50 |
Drawing
|
Request Quote |
| 1 3/4 X 1 3/4 X 1/8 HR ANGLE 1 3/4 X 1 3/4 X 1/8 HR ANGLE/Asset/Angles-model.png | Length A (in) N/A 1-3/4 | Length B (in) N/A 1 3/4 | Thickness (in) N/A 0.1250 | Weight Per Linear Foot (lb) N/A 1.44 | Material N/A Carbon Steel | Grade N/A A36 Grade 50 |
Drawing
|
Request Quote |
| 1 3/4 X 1 3/4 X 3/16 HR ANGLE 1 3/4 X 1 3/4 X 3/16 HR ANGLE/Asset/Angles-model.png | Length A (in) N/A 1-3/4 | Length B (in) N/A 1 3/4 | Thickness (in) N/A 3/16 | Weight Per Linear Foot (lb) N/A 2.12 | Material N/A Carbon Steel | Grade N/A A36 Grade 50 |
Drawing
|
Request Quote |
| 1 3/4 X 1 3/4 X 1/4 HR ANGLE 1 3/4 X 1 3/4 X 1/4 HR ANGLE/Asset/Angles-model.png | Length A (in) N/A 1-3/4 | Length B (in) N/A 1 3/4 | Thickness (in) N/A 1/4 | Weight Per Linear Foot (lb) N/A 2.77 | Material N/A Carbon Steel | Grade N/A A36 Grade 50 |
Drawing
|
Request Quote |
| 2 X 1 1/2 X 1/8 HR ANGLE 2 X 1 1/2 X 1/8 HR ANGLE/Asset/Angles-model.png | Length A (in) N/A 2 | Length B (in) N/A 1.5 | Thickness (in) N/A 0.1250 | Weight Per Linear Foot (lb) N/A 1.44 | Material N/A Carbon Steel | Grade N/A A36 Grade 50 |
Drawing
|
Request Quote |
| 2 X 1 1/2 X 3/16HR ANGLE 2 X 1 1/2 X 3/16HR ANGLE/Asset/Angles-model.png | Length A (in) N/A 2 | Length B (in) N/A 1.5 | Thickness (in) N/A 3/16 | Weight Per Linear Foot (lb) N/A 2.12 | Material N/A Carbon Steel | Grade N/A A36 Grade 50 |
Drawing
|
Request Quote |
| 2 X 1 1/2 X 1/4 HR ANGLE 2 X 1 1/2 X 1/4 HR ANGLE/Asset/Angles-model.png | Length A (in) N/A 2 | Length B (in) N/A 1.5 | Thickness (in) N/A 1/4 | Weight Per Linear Foot (lb) N/A 2.77 | Material N/A Carbon Steel | Grade N/A A36 Grade 50 |
Drawing
|
Request Quote |
| 2 X 2 X 1/8 HR ANGLE 2 X 2 X 1/8 HR ANGLE/Asset/Angles-model.png | Length A (in) N/A 2 | Length B (in) N/A 2 | Thickness (in) N/A 0.1250 | Weight Per Linear Foot (lb) N/A 1.65 | Material N/A Carbon Steel | Grade N/A A36 Grade 50 |
Drawing
|
Request Quote |
| 2 X 2 X 3/16 HR ANGLE 2 X 2 X 3/16 HR ANGLE/Asset/Angles-model.png | Length A (in) N/A 2 | Length B (in) N/A 2 | Thickness (in) N/A 3/16 | Weight Per Linear Foot (lb) N/A 2.44 | Material N/A Carbon Steel | Grade N/A A36 Grade 50 |
Drawing
|
Request Quote |
| 2 X 2 X 1/4 HR ANGLE 2 X 2 X 1/4 HR ANGLE/Asset/Angles-model.png | Length A (in) N/A 2 | Length B (in) N/A 2 | Thickness (in) N/A 1/4 | Weight Per Linear Foot (lb) N/A 3.19 | Material N/A Carbon Steel | Grade N/A A36 Grade 50 |
Drawing
|
Request Quote |
| 2 X 2 X 5/16 HR ANGLE 2 X 2 X 5/16 HR ANGLE/Asset/Angles-model.png | Length A (in) N/A 2 | Length B (in) N/A 2 | Thickness (in) N/A 5/16 | Weight Per Linear Foot (lb) N/A 3.92 | Material N/A Carbon Steel | Grade N/A A36 Grade 50 |
Drawing
|
Request Quote |
| 2 X 2 X 3/8 HR ANGLE 2 X 2 X 3/8 HR ANGLE/Asset/Angles-model.png | Length A (in) N/A 2 | Length B (in) N/A 2 | Thickness (in) N/A 3/8 | Weight Per Linear Foot (lb) N/A 4.70 | Material N/A Carbon Steel | Grade N/A A36 Grade 50 |
Drawing
|
Request Quote |
| 2 1/2 X 1 1/2 X 3/16 HR ANGLE 2 1/2 X 1 1/2 X 3/16 HR ANGLE/Asset/Angles-model.png | Length A (in) N/A 2-1/2 | Length B (in) N/A 1.5 | Thickness (in) N/A 3/16 | Weight Per Linear Foot (lb) N/A 2.44 | Material N/A Carbon Steel | Grade N/A A36 Grade 50 |
Drawing
|
Request Quote |
| 2 1/2 X 1 1/2 X 1/4 HR ANGLE 2 1/2 X 1 1/2 X 1/4 HR ANGLE/Asset/Angles-model.png | Length A (in) N/A 2-1/2 | Length B (in) N/A 1.5 | Thickness (in) N/A 1/4 | Weight Per Linear Foot (lb) N/A 3.19 | Material N/A Carbon Steel | Grade N/A A36 Grade 50 |
Drawing
|
Request Quote |
| 2 1/2 X 2 X 3/16 HR ANGLE 2 1/2 X 2 X 3/16 HR ANGLE/Asset/Angles-model.png | Length A (in) N/A 2-1/2 | Length B (in) N/A 2 | Thickness (in) N/A 3/16 | Weight Per Linear Foot (lb) N/A 2.75 | Material N/A Carbon Steel | Grade N/A A36 Grade 50 |
Drawing
|
Request Quote |
